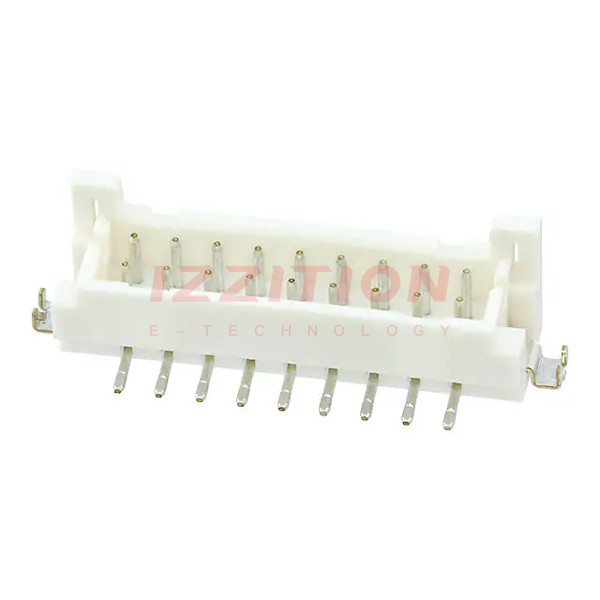

DF11Z-18DP-2V(27)
  • Share:

Hirose Electric Co Ltd DF11Z-18DP-2V(27)

Manufacturer No:
DF11Z-18DP-2V(27)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF11Z-18DP-2V(27) Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 18POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:18
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.283" (7.19mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Pick and Place, Solder Retention
Operating Temperature:-30°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):2A
Voltage Rating:250V
0 Remaining View Similar

In Stock

$1.66
389

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF11Z-18DP-2V(27) DF11Z-8DP-2V(27)   DF11Z-28DP-2V(27)   DF11CZ-18DP-2V(27)   DF11Z-12DP-2V(27)   DF11Z-14DP-2V(27)   DF11Z-16DP-2V(27)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Active Last Time Buy Active Active
Connector Type Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions 18 8 28 18 12 14 16
Number of Rows 2 2 2 2 2 2 2
Row Spacing - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions Loaded All All All All All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder Solder Solder Solder Solder
Fastening Type Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock
Contact Length - Mating - - - - - - -
Contact Length - Post - - - - - - -
Overall Contact Length - - - - - - -
Insulation Height 0.283" (7.19mm) 0.283" (7.19mm) 0.283" (7.19mm) 0.283" (7.19mm) 0.283" (7.19mm) 0.283" (7.19mm) 0.283" (7.19mm)
Contact Shape Circular Circular Circular Circular Circular Circular Circular
Contact Finish - Mating Tin Tin Tin Tin Tin Tin Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm) 39.4µin (1.00µm) 39.4µin (1.00µm) 39.4µin (1.00µm) 39.4µin (1.00µm) 39.4µin (1.00µm) 39.4µin (1.00µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass Brass Brass
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Board Guide, Pick and Place, Solder Retention Board Guide, Pick and Place, Solder Retention Board Guide, Pick and Place, Solder Retention Pick and Place, Solder Retention Board Guide, Pick and Place, Solder Retention Board Guide, Pick and Place, Solder Retention Board Guide, Pick and Place, Solder Retention
Operating Temperature -30°C ~ 85°C -30°C ~ 85°C -30°C ~ 85°C -30°C ~ 85°C -30°C ~ 85°C -30°C ~ 85°C -30°C ~ 85°C
Ingress Protection - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Beige Beige Beige Beige Beige Beige Beige
Current Rating (Amps) 2A 2A 2A 2A 2A 2A 2A
Voltage Rating 250V 250V 250V 250V 250V 250V 250V
