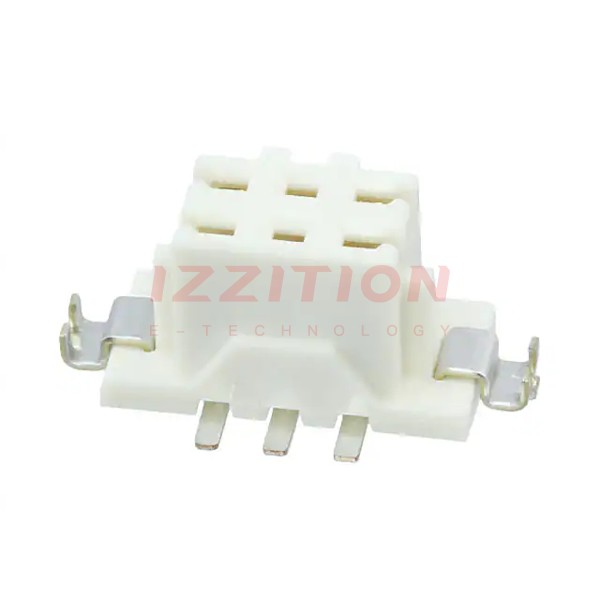

| Part Number | DF11CZ-6DS-2V(52) | DF11CZ-6DS-2V(22) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 6 | 6 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Termination | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Finish - Mating | Gold | Tin |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 39.4µin (1.00µm) |
| Insulation Color | Beige | Beige |
| Insulation Height | 0.234" (5.95mm) | 0.234" (5.95mm) |
| Contact Length - Post | - | - |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | 7.55mm, 8.2mm | 7.55mm, 8.2mm |
| Ingress Protection | - | - |
| Features | Pick and Place, Solder Retention | Pick and Place, Solder Retention |
| Current Rating (Amps) | 2A | 2A |
| Voltage Rating | 250V | 250V |
