DF11CZ-10DS-2V(52)
  • Share:

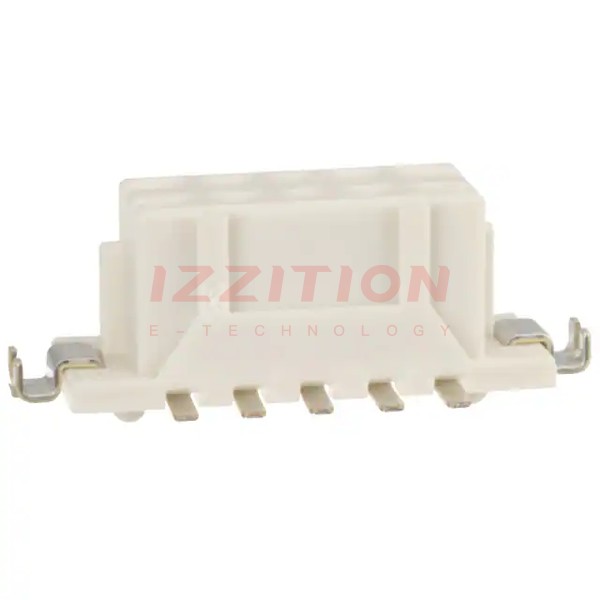

Hirose Electric Co Ltd DF11CZ-10DS-2V(52)

Manufacturer No:
DF11CZ-10DS-2V(52)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
DF11CZ-10DS-2V(52) Datasheet
ECAD Model:
-
Description:
CONN RCPT 10POS 0.079 GOLD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Friction Lock
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Beige
Insulation Height:0.234" (5.95mm)
Contact Length - Post:-
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:7.55mm, 8.2mm
Ingress Protection:-
Features:Pick and Place, Solder Retention
Current Rating (Amps):2A
Voltage Rating:250V
0 Remaining View Similar

In Stock

$1.94
169

Please send RFQ , we will respond immediately.

Similar Products

Part Number DF11CZ-10DS-2V(52) DF11CZ-12DS-2V(52)   DF11CZ-10DS-2V(22)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active
Connector Type Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable
Number of Positions 10 12 10
Number of Positions Loaded All All All
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Rows 2 2 2
Row Spacing - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Mounting Type Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder
Fastening Type Friction Lock Friction Lock Friction Lock
Contact Finish - Mating Gold Gold Tin
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 39.4µin (1.00µm)
Insulation Color Beige Beige Beige
Insulation Height 0.234" (5.95mm) 0.234" (5.95mm) 0.234" (5.95mm)
Contact Length - Post - - -
Operating Temperature -30°C ~ 85°C -30°C ~ 85°C -30°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0
Contact Finish - Post Tin Tin Tin
Mated Stacking Heights 7.55mm, 8.2mm 7.55mm, 8.2mm 7.55mm, 8.2mm
Ingress Protection - - -
Features Pick and Place, Solder Retention Pick and Place, Solder Retention Pick and Place, Solder Retention
Current Rating (Amps) 2A 2A 2A
Voltage Rating 250V 250V 250V
