DF11-26DP-2DS(90)
  • Share:

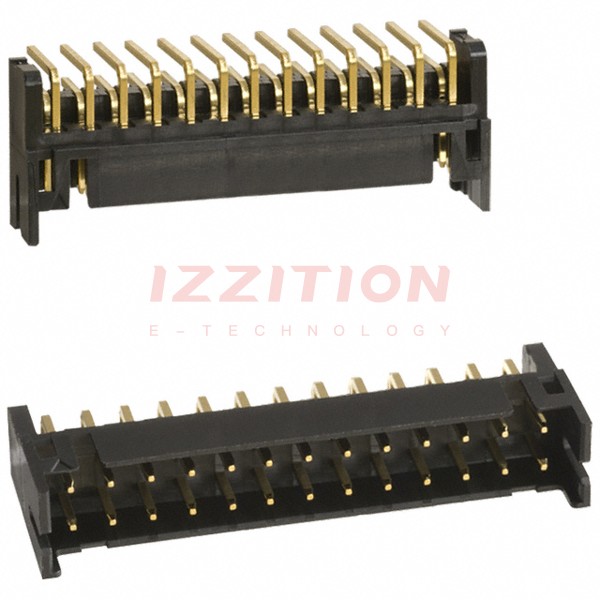

Hirose Electric Co Ltd DF11-26DP-2DS(90)

Manufacturer No:
DF11-26DP-2DS(90)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bag
Datasheet:
DF11-26DP-2DS(90) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 26POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.118" (3.00mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.197" (5.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-30°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A
Voltage Rating:250V
0 Remaining View Similar

In Stock

-
534

Please send RFQ , we will respond immediately.
