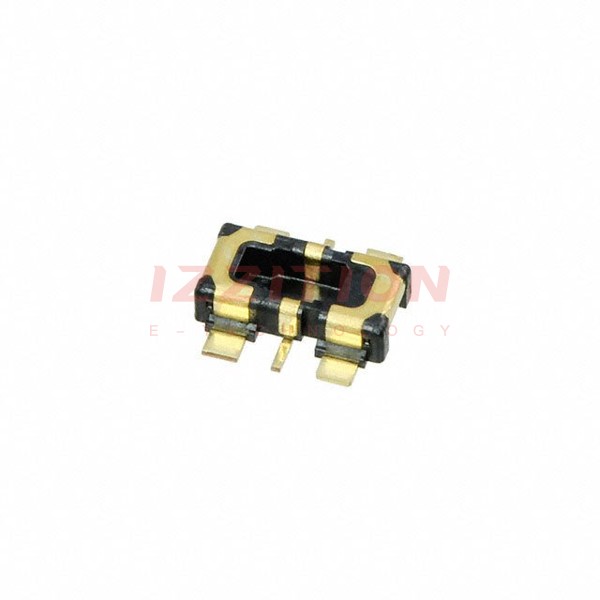

| Part Number | BM22L-4P-V(53) | BM22L-6P-V(53) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Outer Shroud Contact | Outer Shroud Contact |
| Pitch - Mating | - | - |
| Number of Positions | 4 (2 + 2 Power) | 6 (4 + 2 Power) |
| Number of Rows | - | - |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Board | Board to Board |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Surface Mount | Surface Mount |
| Termination | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Length - Mating | - | - |
| Contact Length - Post | - | - |
| Overall Contact Length | - | - |
| Insulation Height | 0.030" (0.75mm) | 0.030" (0.75mm) |
| Contact Shape | - | - |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 2.00µin (0.051µm) | 2.00µin (0.051µm) |
| Contact Finish - Post | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Features | - | - |
| Operating Temperature | -35°C ~ 85°C | -35°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | - | - |
| Voltage Rating | 50V | 50V |
