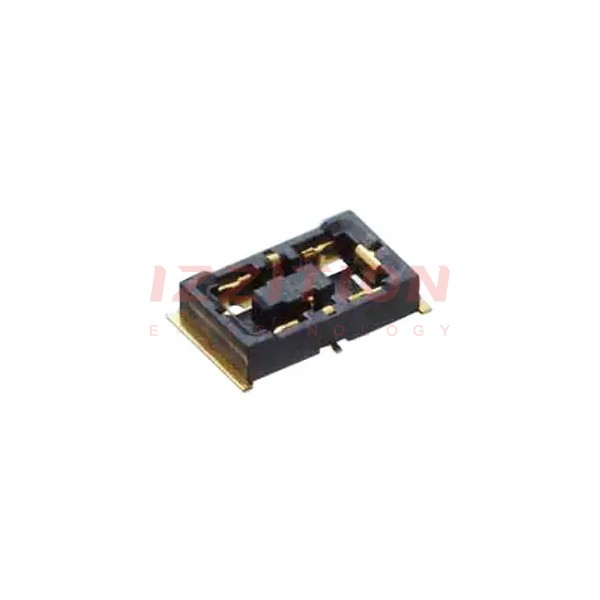

| Part Number | BM22-4S-V(53) | BM22-6S-V(53) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Center Strip Contact | Center Strip Contact |
| Style | Board to FPC | Board to FPC |
| Number of Positions | 4 (2 + 2 Power) | 6 (4 + 2 Power) |
| Number of Positions Loaded | All | All |
| Pitch - Mating | - | 0.016" (0.40mm) |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Termination | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1.97µin (0.050µm) | 1.97µin (0.050µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.035" (0.90mm) | 0.035" (0.90mm) |
| Contact Length - Post | - | - |
| Operating Temperature | -35°C ~ 85°C | -35°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Gold | Gold |
| Mated Stacking Heights | 0.9mm | 0.9mm |
| Ingress Protection | - | - |
| Features | Pick and Place | Pick and Place |
| Current Rating (Amps) | 0.3A Signal, 4A Power | 0.3A Signal, 4A Power |
| Voltage Rating | 50V | 50V |
