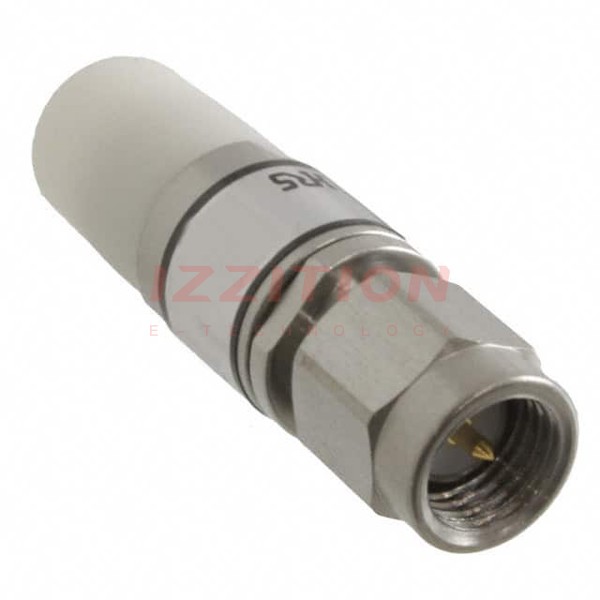

| Part Number | AT-103(40) | AT-503(40) | AT-403(40) | AT-104(40) | AT-105(40) | AT-107(40) | AT-113(40) | AT-106(40) | AT-108(40) | AT-109(40) | AT-303(40) | AT-203(40) | AT-1103(40) | AT-1903(40) | AT-603(40) | AT-1003(40) | AT-101(40) | AT-102(40) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Last Time Buy | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Last Time Buy | Obsolete | Active | Active | Active |
| Attenuation Value | 3dB | 3dB | 3dB | 4dB | 5dB | 7dB | 13dB | 6dB | 8dB | 9dB | 3dB | 3dB | 3dB | 3dB | 3dB | 3dB | 1dB | 2dB |
| Frequency Range | 0 Hz ~ 18 GHz | 0 Hz ~ 4 GHz | 0 Hz ~ 13 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 8 GHz | 0 Hz ~ 8 GHz | 0 Hz ~ 6 GHz | 0 Hz ~ 8 GHz | 0 Hz ~ 18 GHz | 0 Hz ~ 18 GHz |
| Power (Watts) | 1W | 2W | 2W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 1W | 10W | 2W | 2W | 10W | 1W | 1W |
| Impedance | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms |
| Package / Case | SMA In-Line Module | BNC In-Line Module | N-Type In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module | TNC In-Line Module | SMA In-Line Module | SMA In-Line Module | SMA In-Line Module |
