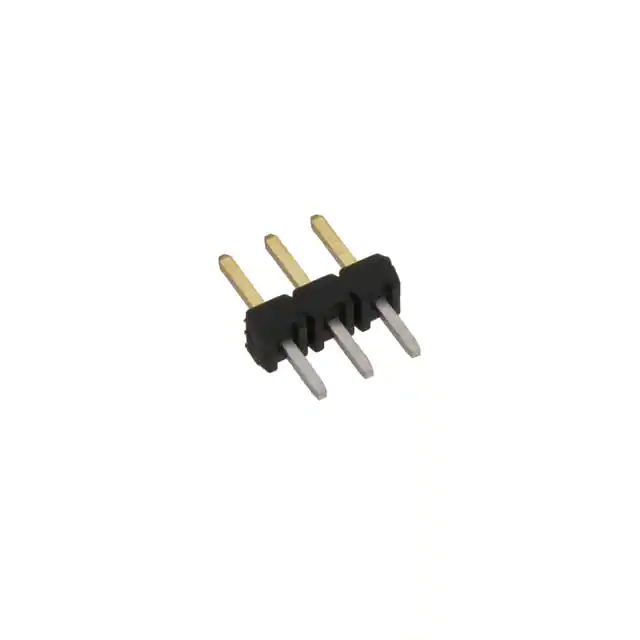

| Part Number | A4B-3PA-2DSA(51) | A4B-8PA-2DSA(51) | A4B-3PA-2DSA(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Obsolete |
| Connector Type | - | - | Header |
| Contact Type | - | - | Male Pin |
| Pitch - Mating | - | - | 0.079" (2.00mm) |
| Number of Positions | - | - | 3 |
| Number of Rows | - | - | 1 |
| Row Spacing - Mating | - | - | - |
| Number of Positions Loaded | - | - | All |
| Style | - | - | Board to Board or Cable |
| Shrouding | - | - | Unshrouded |
| Mounting Type | - | - | Through Hole |
| Termination | - | - | Solder |
| Fastening Type | - | - | Push-Pull |
| Contact Length - Mating | - | - | 0.138" (3.50mm) |
| Contact Length - Post | - | - | 0.102" (2.60mm) |
| Overall Contact Length | - | - | 0.311" (7.90mm) |
| Insulation Height | - | - | 0.071" (1.80mm) |
| Contact Shape | - | - | Square |
| Contact Finish - Mating | - | - | Gold |
| Contact Finish Thickness - Mating | - | - | Flash |
| Contact Finish - Post | - | - | Tin |
| Contact Material | - | - | Brass |
| Insulation Material | - | - | Polyamide (PA), Nylon |
| Features | - | - | - |
| Operating Temperature | - | - | -55°C ~ 85°C |
| Ingress Protection | - | - | - |
| Material Flammability Rating | - | - | UL94 V-0 |
| Insulation Color | - | - | Black |
| Current Rating (Amps) | - | - | 2A |
| Voltage Rating | - | - | 200V |
