A3E-50PA-2DSA
  • Share:

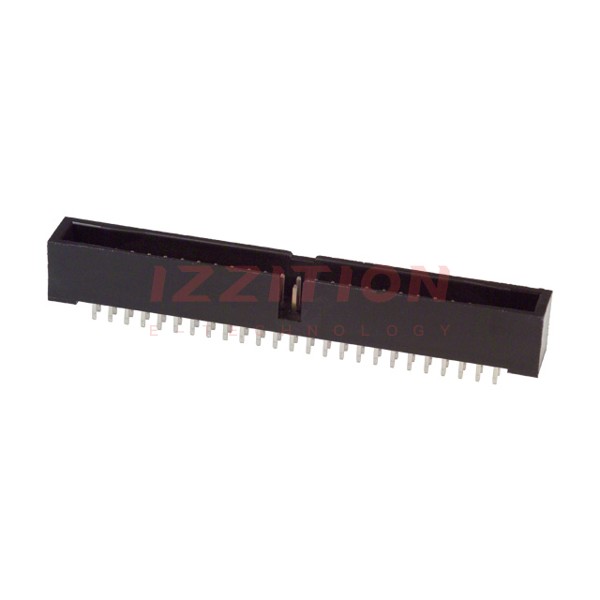

Hirose Electric Co Ltd A3E-50PA-2DSA

Manufacturer No:
A3E-50PA-2DSA
Manufacturer:
Hirose Electric Co Ltd
Package:
Tube
Datasheet:
A3E-50PA-2DSA Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 50POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:50
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.310" (7.87mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Keying Slot
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A
Voltage Rating:12V
0 Remaining View Similar

In Stock

-
442

Please send RFQ , we will respond immediately.
