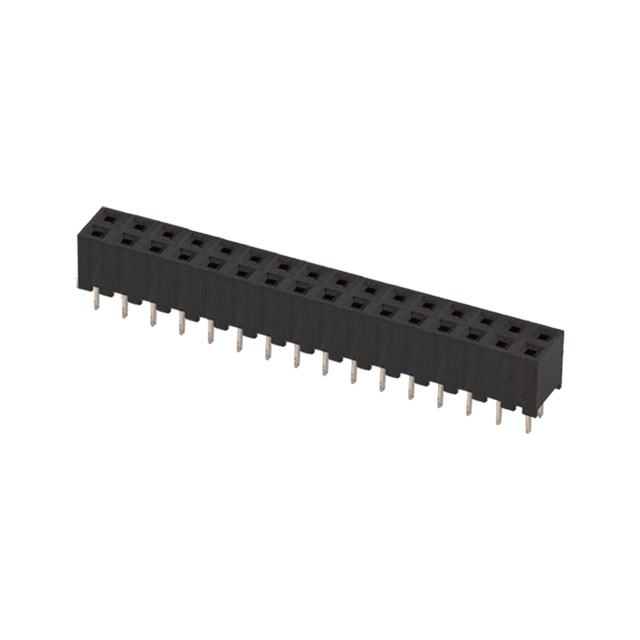

| Part Number | A3C-32DA-2DSE(71) | A3C-32DA-2DSA(71) | A3C-32DA-2DSC(71) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 32 | 32 | 32 |
| Number of Positions Loaded | All | All | All |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 2 | 2 | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Insulation Color | Black | Black | Black |
| Insulation Height | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) |
| Contact Length - Post | 0.050" (1.27mm) | 0.118" (3.00mm) | 0.079" (2.00mm) |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin |
| Mated Stacking Heights | 5.1mm, 6mm | 5.1mm, 6mm | 5.1mm, 6mm |
| Ingress Protection | - | - | - |
| Features | - | - | - |
| Current Rating (Amps) | 1A | 1A | 1A |
| Voltage Rating | 200VAC | 200VAC | 200VAC |
