Hirose Electric Co Ltd-A3C-18DA-2DSA - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Part Number	A3C-18DA-2DSA	A3C-8DA-2DSA	A3C-18DA-2DSC	A3C-10DA-2DSA	A3C-12DA-2DSA	A3C-14DA-2DSA	A3C-16DA-2DSA
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd
Product Status	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
Number of Positions	18	8	18	10	12	14	16
Number of Positions Loaded	All	All	All	All	All	All	All
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2	2	2	2	2	2
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)
Insulation Color	Black	Black	Black	Black	Black	Black	Black
Insulation Height	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Contact Length - Post	0.118" (3.00mm)	0.118" (3.00mm)	0.079" (2.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)
Operating Temperature	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Mated Stacking Heights	5.1mm, 6mm	5.1mm, 6mm	5.1mm, 6mm	5.1mm, 6mm	5.1mm, 6mm	5.1mm, 6mm	5.1mm, 6mm
Ingress Protection	-	-	-	-	-	-	-
Features	-	-	-	-	-	-	-
Current Rating (Amps)	1A	1A	1A	1A	1A	1A	1A
Voltage Rating	200VAC	200VAC	200VAC	200VAC	200VAC	200VAC	200VAC

Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	18
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Insulation Color:	Black
Insulation Height:	0.165" (4.20mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	5.1mm, 6mm
Ingress Protection:	-
Features:	-
Current Rating (Amps):	1A
Voltage Rating:	200VAC

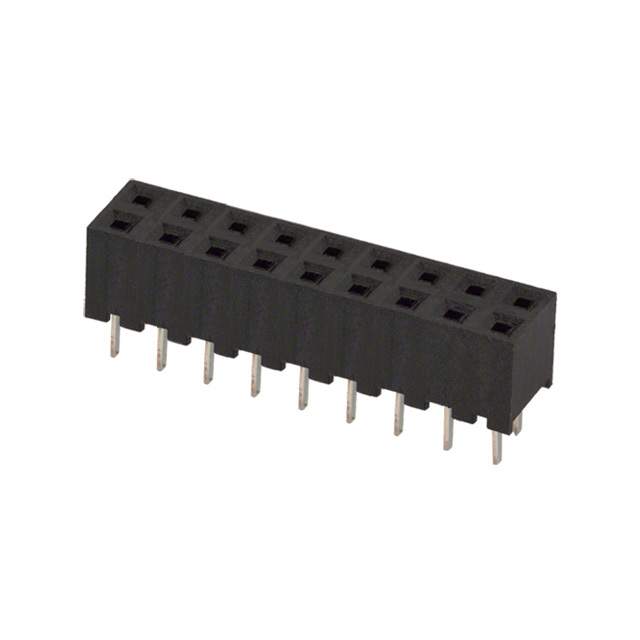

Hirose Electric Co Ltd A3C-18DA-2DSA
