A3A-8DA-2SV
  • Share:

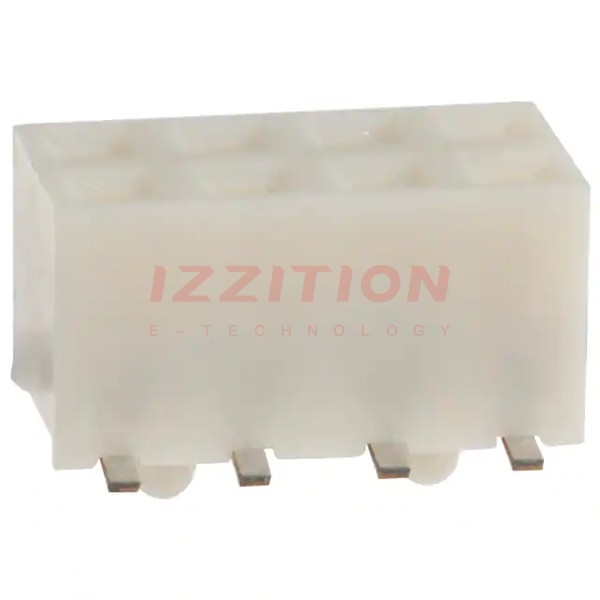

Hirose Electric Co Ltd A3A-8DA-2SV

Manufacturer No:
A3A-8DA-2SV
Manufacturer:
Hirose Electric Co Ltd
Package:
Tube
Datasheet:
A3A-8DA-2SV Datasheet
ECAD Model:
-
Description:
CONN RCPT 8POS 0.079 GOLD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:8
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Brown
Insulation Height:0.165" (4.20mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:5.1mm, 6mm
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):1A
Voltage Rating:200VAC
0 Remaining View Similar

In Stock

-
148

Please send RFQ , we will respond immediately.

Similar Products

Part Number A3A-8DA-2SV A3-8DA-2SV   A3A-28DA-2SV   A3A-4DA-2SV   A3A-6DA-2SV
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Type Receptacle Receptacle Receptacle Receptacle Receptacle
Contact Type Female Socket Female Socket Female Socket Female Socket Female Socket
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Number of Positions 8 8 28 4 6
Number of Positions Loaded All All All All All
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Rows 2 2 2 2 2
Row Spacing - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Termination Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Finish - Mating Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm)
Insulation Color Brown Brown Brown Brown Brown
Insulation Height 0.165" (4.20mm) 0.165" (4.20mm) 0.165" (4.20mm) 0.165" (4.20mm) 0.165" (4.20mm)
Contact Length - Post - - - - -
Operating Temperature -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C -55°C ~ 85°C
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Contact Finish - Post Tin Tin Tin Tin Tin
Mated Stacking Heights 5.1mm, 6mm 5.1mm, 6mm 5.1mm, 6mm 5.1mm, 6mm 5.1mm, 6mm
Ingress Protection - - - - -
Features Board Guide - Board Guide Board Guide Board Guide
Current Rating (Amps) 1A 1A 1A 1A 1A
Voltage Rating 200VAC 200VAC 200VAC 200VAC 200VAC
