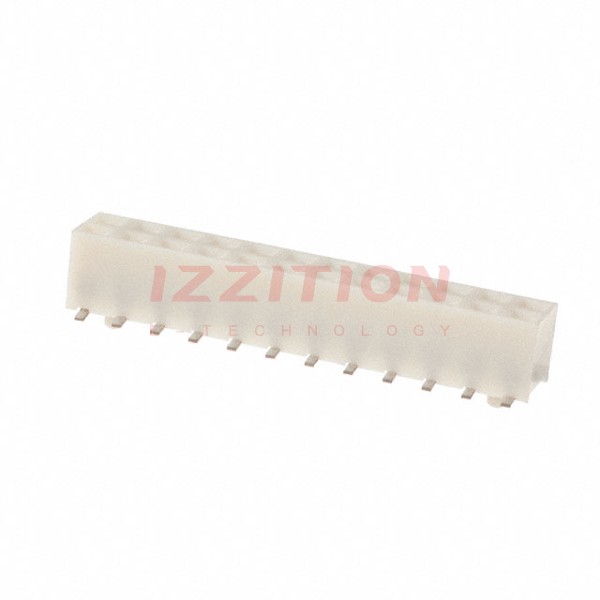

Hirose Electric Co Ltd A3-24DA-2SV

Manufacturer No:
A3-24DA-2SV
Manufacturer:
Hirose Electric Co Ltd
Package:
Tube
Datasheet:
A3-24DA-2SV Datasheet
ECAD Model:
-
Description:
CONN RCPT 24POS 0.079 GOLD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:24
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Brown
Insulation Height:0.165" (4.20mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:5.1mm, 6mm
Ingress Protection:-
Features:-
Current Rating (Amps):1A
Voltage Rating:200VAC
