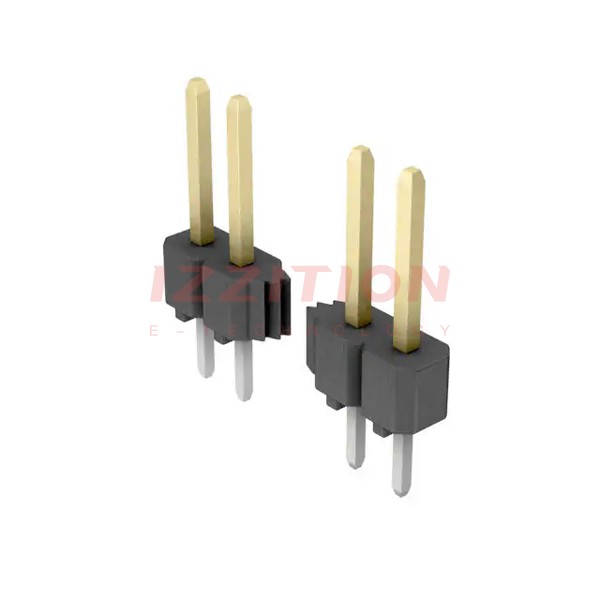

Hirose Electric Co Ltd-A2-16PA-2.54DSA(71) - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	A2-16PA-2.54DSA(71)	A2-6PA-2.54DSA(71)	A2-1PA-2.54DSA(71)	A2-17PA-2.54DSA(71)	A2-18PA-2.54DSA(71)	A2-19PA-2.54DSA(71)	A1-16PA-2.54DSA(71)	A2-10PA-2.54DSA(71)	A2-11PA-2.54DSA(71)	A2-12PA-2.54DSA(71)	A2-13PA-2.54DSA(71)	A2-14PA-2.54DSA(71)	A2-15PA-2.54DSA(71)	A2-16PA-2.54DS(71)
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Hirose Electric Co Ltd
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	-	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	16	6	1	17	18	19	16	10	11	12	13	14	15	16
Number of Rows	1	1	1	1	1	1	2	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	0.100" (2.54mm)	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
Shrouding	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole, Right Angle
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)
Contact Length - Post	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.138" (3.50mm)
Overall Contact Length	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	0.454" (11.54mm)	-
Insulation Height	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.157" (4.00mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)	8.00µin (0.203µm)
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Operating Temperature	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C	-55°C ~ 85°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating (Amps)	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A
Voltage Rating	200V	200V	200V	200V	200V	200V	200V	200V	200V	200V	200V	200V	200V	200V

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	16
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.236" (6.00mm)
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	0.454" (11.54mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	200V
