A1-8PA-2.54DS(93)
  • Share:

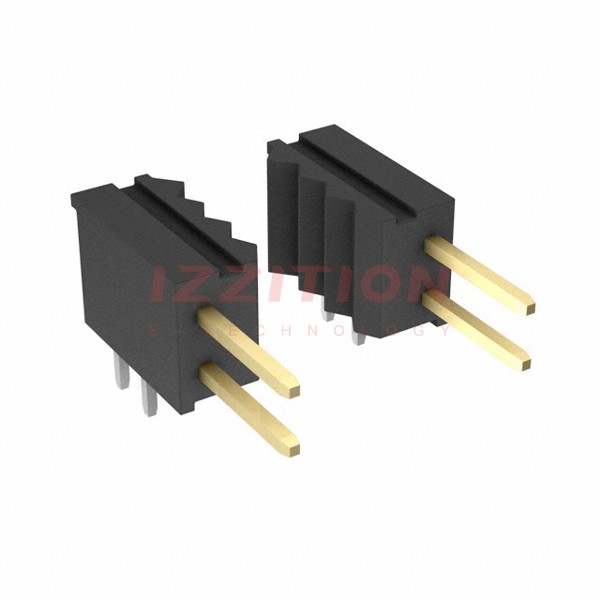

Hirose Electric Co Ltd A1-8PA-2.54DS(93)

Manufacturer No:
A1-8PA-2.54DS(93)
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
A1-8PA-2.54DS(93) Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 8POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.094" (2.40mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.236" (6.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:200V
0 Remaining View Similar

In Stock

-
150

Please send RFQ , we will respond immediately.
