3260-10S3(59)
  • Share:

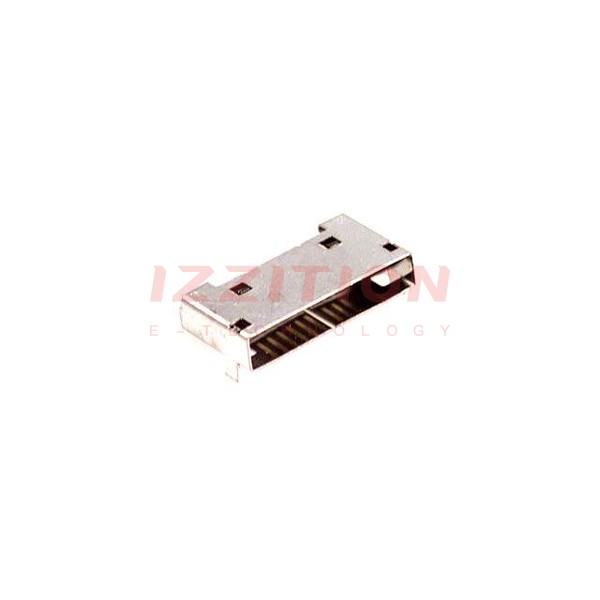

Hirose Electric Co Ltd 3260-10S3(59)

Manufacturer No:
3260-10S3(59)
Manufacturer:
Hirose Electric Co Ltd
Package:
Tape & Reel (TR)
Datasheet:
3260-10S3(59) Datasheet
ECAD Model:
-
Description:
CONN RCPT 10P 0.031 GOLD SMD R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Center Strip Contact
Style:Board to Cable/Wire
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.031" (0.80mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Black
Insulation Height:0.114" (2.90mm)
Contact Length - Post:-
Operating Temperature:-
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide, Shielded
Current Rating (Amps):500mA
Voltage Rating:125VAC
0 Remaining View Similar

In Stock

$2.32
135

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3260-10S3(59) 3260-10S3(55)   3260-10S3(56)   3260-10S3(58)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Product Status Active Active Active Last Time Buy
Connector Type Receptacle Receptacle Receptacle Receptacle
Contact Type Center Strip Contact Center Strip Contact Center Strip Contact Center Strip Contact
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Number of Positions 10 10 10 10
Number of Positions Loaded All All All All
Pitch - Mating 0.031" (0.80mm) 0.031" (0.80mm) 0.031" (0.80mm) 0.031" (0.80mm)
Number of Rows 1 1 1 1
Row Spacing - Mating - - - -
Mounting Type Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle Surface Mount, Right Angle
Termination Solder Solder Solder Solder
Fastening Type Latch Holder Latch Holder Latch Holder Latch Holder
Contact Finish - Mating Gold Gold Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm) 8.00µin (0.203µm)
Insulation Color Black Black Black Black
Insulation Height 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm) 0.114" (2.90mm)
Contact Length - Post - - - -
Operating Temperature - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Contact Finish - Post Gold Gold Gold Gold
Mated Stacking Heights - - - -
Ingress Protection - - - -
Features Board Guide, Shielded Board Guide, Shielded Board Guide, Shielded Board Guide, Shielded
Current Rating (Amps) 500mA 500mA 500mA 500mA
Voltage Rating 125VAC 125VAC 125VAC 125VAC
