3260-10S2
  • Share:

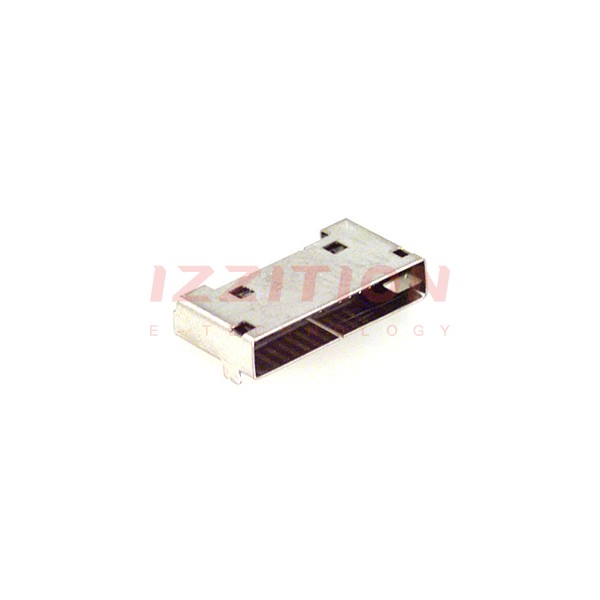

Hirose Electric Co Ltd 3260-10S2

Manufacturer No:
3260-10S2
Manufacturer:
Hirose Electric Co Ltd
Package:
Bulk
Datasheet:
3260-10S2 Datasheet
ECAD Model:
-
Description:
CONN RCPT 10P 0.031 GOLD SMD R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Center Strip Contact
Style:Board to Cable/Wire
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.031" (0.80mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Black
Insulation Height:0.114" (2.90mm)
Contact Length - Post:-
Operating Temperature:-
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide, Shielded
Current Rating (Amps):500mA
Voltage Rating:125VAC
0 Remaining View Similar

In Stock

-
393

Please send RFQ , we will respond immediately.
