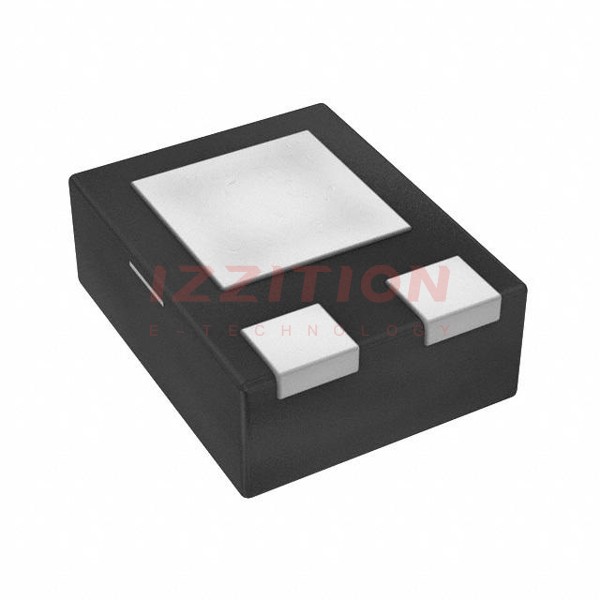

| Part Number | ZXTP718MATA | ZXTP717MATA |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Transistor Type | PNP | PNP |
| Current - Collector (Ic) (Max) | 3.5 A | 4.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V | 12 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 350mA, 3.5A | 310mV @ 150mA, 4A |
| Current - Collector Cutoff (Max) | 25nA | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 2A, 2V | 300 @ 100mA, 2V |
| Power - Max | 3 W | 3 W |
| Frequency - Transition | 180MHz | 100MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 3-UDFN | 3-UDFN Exposed Pad |
| Supplier Device Package | DFN2020B-3 | U-DFN2020-3 |
