Diodes Incorporated-ZXTN620MATA - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	3.5 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	325mV @ 300mA, 3.5A
Current - Collector Cutoff (Max):	25nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	300 @ 200mA, 2V
Power - Max:	3 W
Frequency - Transition:	160MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	3-UDFN
Supplier Device Package:	DFN2020B-3

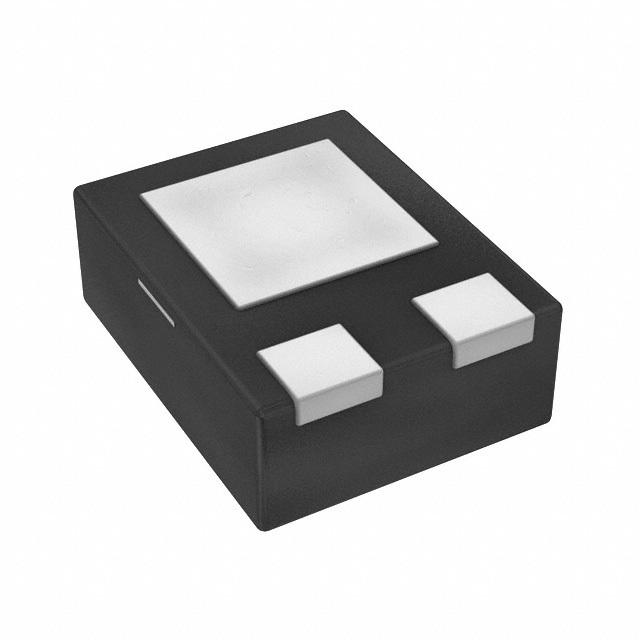

Diodes Incorporated ZXTN620MATA
