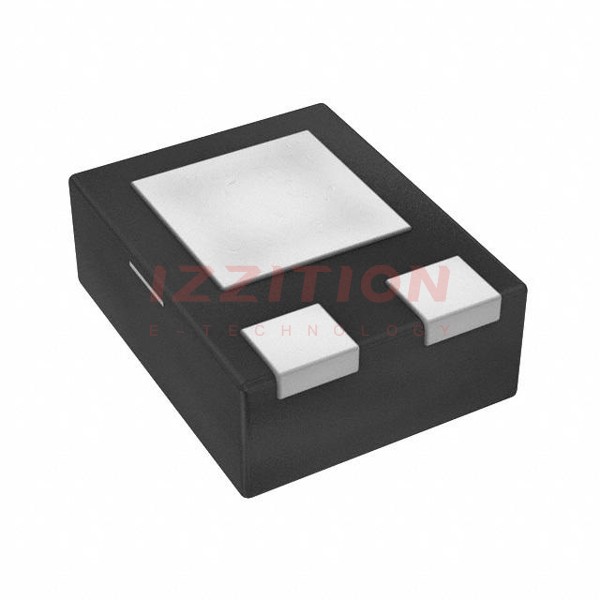

| Part Number | ZXTN618MATA | ZXTN619MATA | ZXTN617MATA |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 4.5 A | 4 A | 4.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V | 50 V | 15 V |
| Vce Saturation (Max) @ Ib, Ic | 270mV @ 125mA, 4.5A | 320mV @ 200mA, 4A | 280mV @ 50mA, 4.5A |
| Current - Collector Cutoff (Max) | 25nA | 25nA | 25nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2A, 2V | 100 @ 2A, 2V | 200 @ 3A, 2V |
| Power - Max | 1.5 W | 3 W | 1.5 W |
| Frequency - Transition | 140MHz | 165MHz | 120MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-UDFN | 3-UDFN | 3-UDFN |
| Supplier Device Package | DFN2020B-3 | DFN2020B-3 | DFN2020B-3 |
