| Part Number | ZXTD618MCTA | ZXTD718MCTA | ZXTD619MCTA | ZXTD617MCTA |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active |
| Transistor Type | 2 NPN (Dual) | 2 PNP (Dual) | 2 NPN (Dual) | 2 NPN (Dual) |
| Current - Collector (Ic) (Max) | 5A | 3.5A | 4A | 5A |
| Voltage - Collector Emitter Breakdown (Max) | 20V | 20V | 50V | 15V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 125mA, 4.5A | 300mV @ 350mA, 3.5A | 320mV @ 200mA, 4A | 310mV @ 50mA, 4.5A |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 200mA, 2V | 300 @ 100mA, 2V | 300 @ 200mA, 2V | 300 @ 200mA, 2V |
| Power - Max | 1.7W | 1.7W | 1.7W | 1.7W |
| Frequency - Transition | 100MHz | 150MHz | 100MHz | 80MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

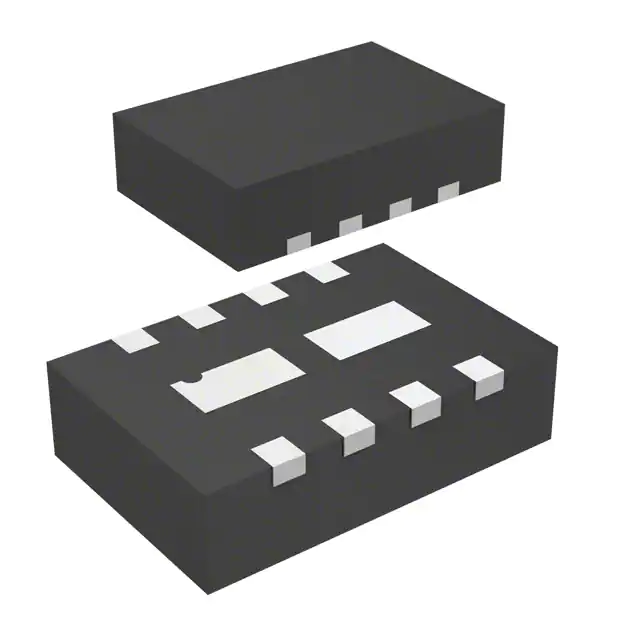

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | W-DFN3020-8 | W-DFN3020-8 | W-DFN3020-8 | W-DFN3020-8 |
