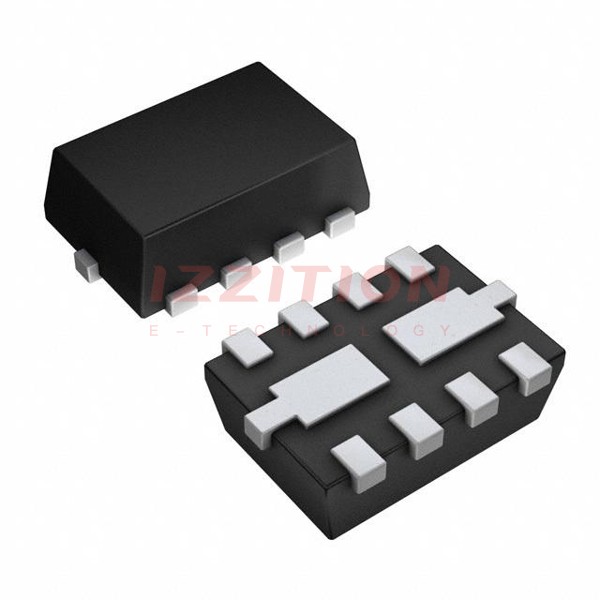

| Part Number | ZXTD1M832TA | ZXTDAM832TA | ZXTDBM832TA | ZXTDA1M832TA | ZXTDCM832TA | ZXTD2M832TA | ZXTD3M832TA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | 2 PNP (Dual) | 2 NPN (Dual) | 2 NPN (Dual) | NPN, PNP | 2 NPN (Dual) | 2 PNP (Dual) | 2 PNP (Dual) |
| Current - Collector (Ic) (Max) | 4A | 4.5A | 4.5A | 4.5A, 4A | 4A | 3.5A | 3A |
| Voltage - Collector Emitter Breakdown (Max) | 12V | 15V | 20V | 15V, 12V | 50V | 20V | 40V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 150mA, 4A | 280mV @ 50mA, 4.5A | 270mV @ 125mA, 4.5A | 280mV @ 50mA, 4.5A, 300mV @ 150mA, 4A | 320mV @ 200mA, 4A | 300mV @ 350mA, 3.5A | 370mV @ 250mA, 2.5A |
| Current - Collector Cutoff (Max) | 25nA | 25nA | 25nA | 25nA | 25nA | 25nA | 25nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 2.5A, 2V | 200 @ 3A, 2V | 200 @ 2A, 2V | 200 @ 3A, 2V / 180 @ 2.5A, 2V | 100 @ 2A, 2V | 150 @ 2A, 2V | 60 @ 1.5A, 2V |
| Power - Max | 1.7W | 1.7W | 1.7W | 1W | 1.7W | 1.7W | 1.7W |
| Frequency - Transition | 110MHz | 120MHz | 140MHz | 120MHz, 110MHz | 165MHz | 180MHz | 190MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-MLP (3x2) | 8-MLP (3x2) | 8-MLP (3x2) | 8-MLP (3x2) | 8-MLP (3x2) | 8-MLP (3x2) | 8-MLP (3x2) |
