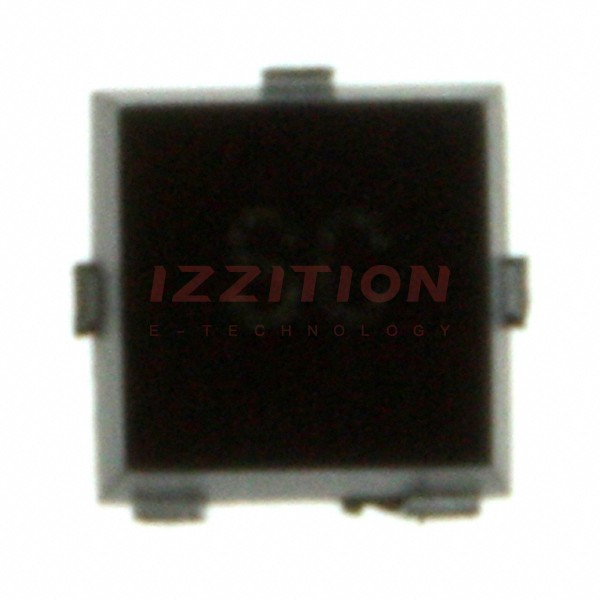

| Part Number | ZXTCM322TA | ZXTEM322TA | ZXT1M322TA | ZXT2M322TA | ZXT3M322TA | ZXTAM322TA | ZXTBM322TA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | PNP | PNP | PNP | NPN | NPN |
| Current - Collector (Ic) (Max) | 4 A | 3.5 A | 4 A | 3.5 A | 3 A | 4.5 A | 4.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 80 V | 12 V | 20 V | 40 V | 15 V | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 320mV @ 200mA, 4A | 325mV @ 300mA, 3.5A | 300mV @ 150mA, 4A | 300mV @ 350mA, 3.5A | 370mV @ 250mA, 2.5A | 280mV @ 50mA, 4.5A | 270mV @ 125mA, 4.5A |
| Current - Collector Cutoff (Max) | 25nA | 25nA | 25nA | 25nA | 25nA | 25nA | 25nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 2A, 2V | 300 @ 200mA, 2V | 180 @ 2.5A, 2V | 150 @ 2A, 2V | 60 @ 1.5A, 2V | 200 @ 3A, 2V | 200 @ 2A, 2V |
| Power - Max | 3 W | 3 W | 3 W | 3 W | 3 W | 3 W | 3 W |
| Frequency - Transition | 165MHz | 160MHz | 110MHz | 180MHz | 190MHz | 120MHz | 140MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-PowerSMD, Flat Leads | 3-PowerSMD, Flat Leads | 3-PowerSMD, Flat Leads | 3-PowerSMD, Flat Leads | 3-PowerSMD, Flat Leads | 3-PowerSMD, Flat Leads | 3-PowerSMD, Flat Leads |
| Supplier Device Package | 3-MLP/DFN (2x2) | 3-MLP/DFN (2x2) | 3-MLP/DFN (2x2) | 3-MLP/DFN (2x2) | 3-MLP/DFN (2x2) | 3-MLP/DFN (2x2) | 3-MLP/DFN (2x2) |
