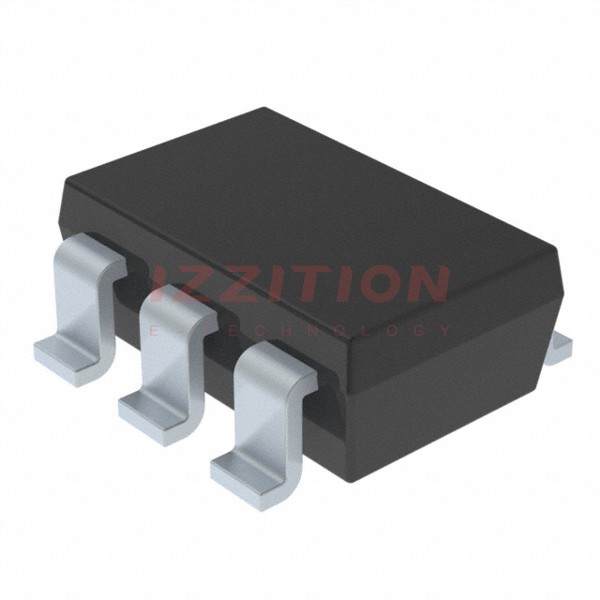

Diodes Incorporated-ZXT13P40DE6TA - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	ZXT13P40DE6TA	ZXT13P40DE6TC	ZXT10P40DE6TA	ZXT13P20DE6TA	ZXT13P40DE6QTA
Manufacturer	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Active	Obsolete	Active	Active	Active
Transistor Type	PNP	PNP	PNP	PNP	PNP
Current - Collector (Ic) (Max)	3 A	3 A	2 A	4 A	3 A
Voltage - Collector Emitter Breakdown (Max)	40 V	40 V	40 V	20 V	40 V
Vce Saturation (Max) @ Ib, Ic	240mV @ 300mA, 3A	240mV @ 300mA, 3A	300mV @ 200mA, 2A	250mV @ 350mA, 3.5A	240mV @ 300mA, 3A
Current - Collector Cutoff (Max)	100nA	100nA	100nA	100nA	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	300 @ 1A, 2V	300 @ 1A, 2V	180 @ 1A, 2V	300 @ 1A, 2V	300 @ 1A, 2V
Power - Max	1.1 W	1.1 W	1.1 W	1.1 W	1.1 W
Frequency - Transition	115MHz	115MHz	190MHz	90MHz	115MHz
Operating Temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	SOT-23-6	SOT-23-6	SOT-23-6	SOT-23-6	SOT-23-6
Supplier Device Package	SOT-26	SOT-26	SOT-23-6	SOT-26	SOT-26

Diodes Incorporated ZXT13P40DE6TA

Transistor Type:	PNP
Current - Collector (Ic) (Max):	3 A
Voltage - Collector Emitter Breakdown (Max):	40 V
Vce Saturation (Max) @ Ib, Ic:	240mV @ 300mA, 3A
Current - Collector Cutoff (Max):	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	300 @ 1A, 2V
Power - Max:	1.1 W
Frequency - Transition:	115MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-23-6
Supplier Device Package:	SOT-26
