| Part Number | ZXT10P12DE6TA | ZXT13P12DE6TA | ZXT10P12DE6TC |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Obsolete |
| Transistor Type | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 3 A | 4 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 12 V | 12 V | 12 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 50mA, 3A | 175mV @ 400mA, 4A | 300mV @ 50mA, 3A |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 100mA, 2V | 300 @ 1A, 2V | 300 @ 100mA, 2V |
| Power - Max | 1.1 W | 1.1 W | 1.1 W |
| Frequency - Transition | 110MHz | 55MHz | 110MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

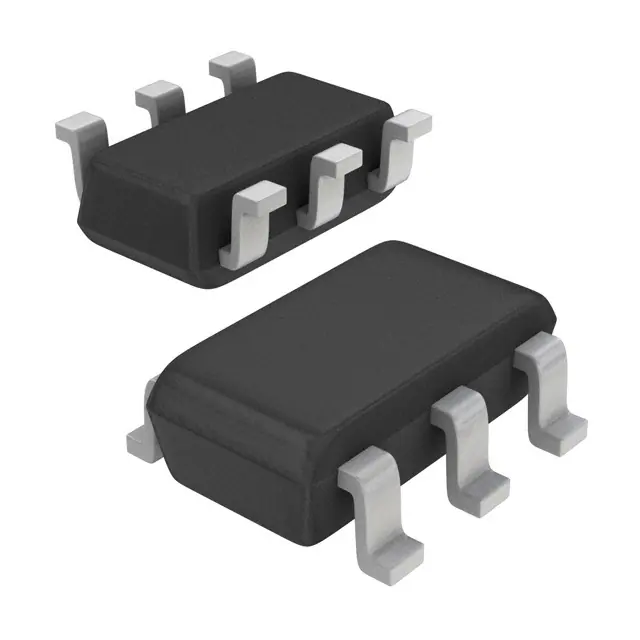

| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 |
| Supplier Device Package | SOT-23-6 | SOT-23-6 | SOT-23-6 |
