Diodes Incorporated-ZXSDS2M832TA - Diodes - Rectifiers - Arrays Product Specifications and Latest Quotes

Diode Configuration:	2 Independent
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io) (per Diode):	1.65A (DC)
Voltage - Forward (Vf) (Max) @ If:	600 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	12 ns
Current - Reverse Leakage @ Vr:	100 µA @ 45 V
Operating Temperature - Junction:	-55°C ~ 125°C
Mounting Type:	Surface Mount

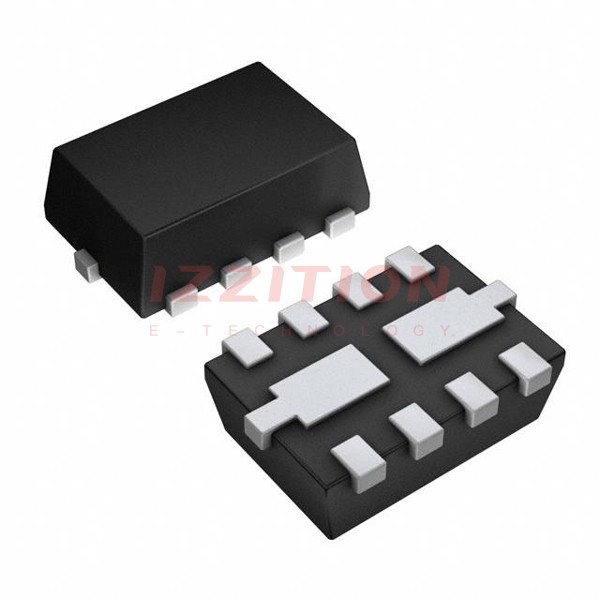

Package / Case:	8-VDFN Exposed Pad
Supplier Device Package:	8-MLP (3x2)

Diodes Incorporated ZXSDS2M832TA
