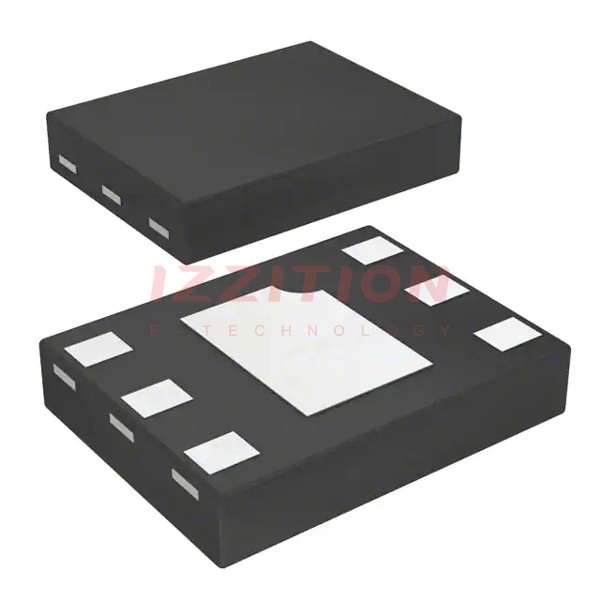

| Part Number | ZXRE160AFT4-7 | ZXRE160FT4-7 | ZXRE060AFT4-7 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Obsolete |
| Reference Type | Shunt | Shunt | Shunt |
| Output Type | Adjustable | Adjustable | Adjustable |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.2V |
| Voltage - Output (Max) | 18 V | 18 V | 18 V |
| Current - Output | 15 mA | 15 mA | 15 mA |
| Tolerance | ±0.5% | ±1% | ±0.5% |
| Temperature Coefficient | - | - | - |
| Noise - 0.1Hz to 10Hz | - | - | - |
| Noise - 10Hz to 10kHz | - | - | - |
| Voltage - Input | - | - | 2V ~ 18V |
| Current - Supply | 3mA | - | 1.5mA |
| Current - Cathode | 300 µA | 1 mA | 300 µA |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad | 6-XFDFN Exposed Pad |
| Supplier Device Package | 6-DFN1520H4 | X2-DFN1520-6 | 6-DFN1520H4 |
