| Part Number | ZXMN3A03E6TC | ZXMN2A03E6TC | ZXMN3A01E6TC | ZXMN3A03E6TA |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 20 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 3.7A (Ta) | 3.7A (Ta) | 2.4A (Ta) | 3.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 2.5V, 4.5V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 7.8A, 10V | 55mOhm @ 7.2A, 4.5V | 120mOhm @ 2.5A, 10V | 50mOhm @ 7.8A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 700mV @ 250µA (Min) | 1V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12.6 nC @ 10 V | 8.2 nC @ 4.5 V | 3.9 nC @ 10 V | 12.6 nC @ 10 V |
| Vgs (Max) | ±20V | ±12V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 25 V | 837 pF @ 10 V | 190 pF @ 25 V | 600 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1.1W (Ta) | 1.1W (Ta) | 1.1W (Ta) | 1.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

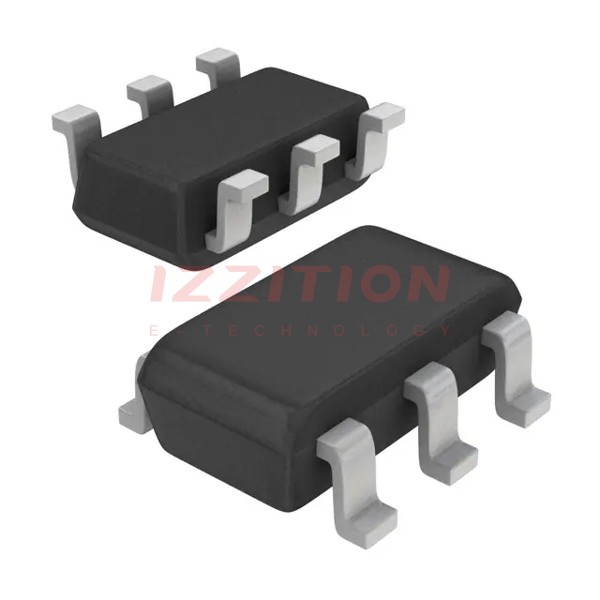

| Supplier Device Package | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 |
| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 |
