Diodes Incorporated-ZXMN2F34MATA - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	60mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	2.8 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	277 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.35W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DFN322
Package / Case:	3-PowerVDFN

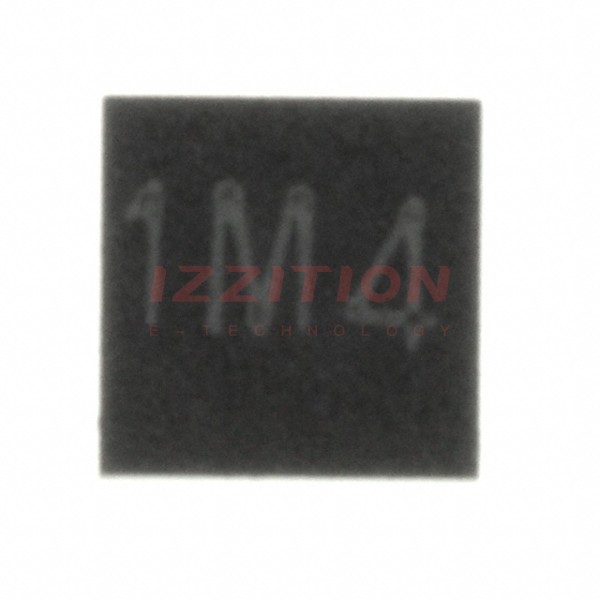

Diodes Incorporated ZXMN2F34MATA
