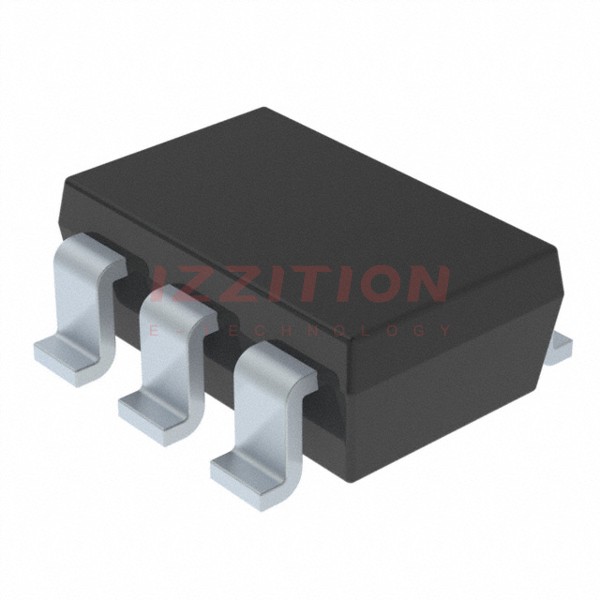

| Part Number | ZXM62P03E6TA | ZXM62P03E6TC | ZXM62N03E6TA | ZXM62P02E6TA |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Obsolete | Obsolete | Active |
| FET Type | P-Channel | P-Channel | N-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.5A (Ta) | 1.5A (Ta) | 3.2A (Ta) | 2.3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | - | 2.7V, 4.5V |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 1.6A, 10V | 230mOhm @ 800mA, 4.5V | 110mOhm @ 2.2A, 10V | 200mOhm @ 1.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1V @ 250µA | 1V @ 250µA | 700mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 10.2 nC @ 10 V | 10.2 nC @ 10 V | 9.6 nC @ 10 V | 5.8 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | - | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 330 pF @ 25 V | 330 pF @ 25 V | 380 pF @ 25 V | 320 pF @ 15 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 625mW (Ta) | 625mW (Ta) | - | 1.1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-26 | SOT-26 | SOT-23-6 | SOT-23-6 |
| Package / Case | SOT-23-6 | SOT-23-6 | SOT-23-6 | SOT-23-6 |
