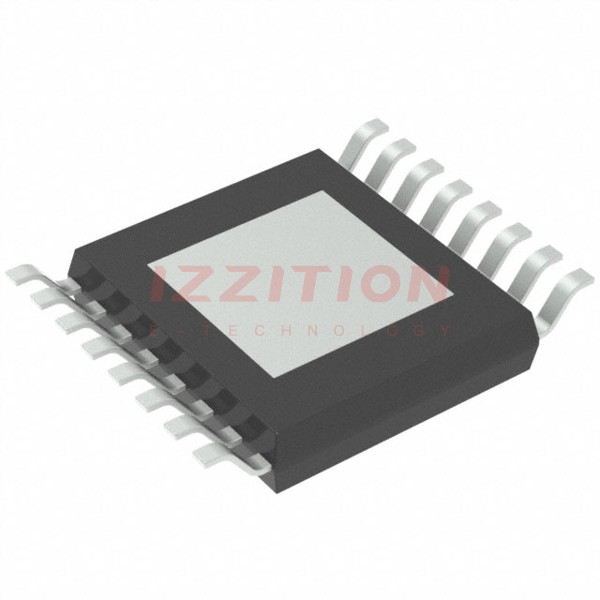

| Part Number | ZXLD1371QESTTC | ZXLD1374QESTTC | ZXLD1370QESTTC |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Type | DC DC Controller | DC DC Regulator | DC DC Controller |
| Topology | Step-Down (Buck), Step-Up (Boost) | Step-Down (Buck), Step-Up (Boost) | Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No | Yes | No |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Supply (Min) | 8V | 8V | 8V |
| Voltage - Supply (Max) | 60V | 60V | 60V |
| Voltage - Output | - | - | 1.25V ~ 60V |
| Current - Output / Channel | - | 1.5A (Switch) | 18mA |
| Frequency | 1MHz | 1MHz | 300kHz ~ 1MHz |
| Dimming | PWM | PWM | PWM |
| Applications | - | Automotive | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP | 20-TSSOP-EP | 16-TSSOP-EP |
