| Part Number | ZXLD1360ET5TA | ZXLD1366ET5TA | ZXLD1362ET5TA | ZXLD1360QET5TA | ZXLD1350ET5TA |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active |
| Type | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator | DC DC Regulator |
| Topology | Step-Down (Buck) | Step-Down (Buck) | Step-Down (Buck) | Step-Down (Buck) | Step-Down (Buck) |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 7V | 6V | 6V | 7V | 7V |
| Voltage - Supply (Max) | 30V | 60V | 60V | 30V | 30V |
| Voltage - Output | 30V | 65V | 65V | 30V | 30V |
| Current - Output / Channel | 1A | 1A | 1A | 1A | 350mA |
| Frequency | 1MHz | 1MHz | 1MHz | 1MHz | 1MHz |
| Dimming | PWM | PWM | PWM | PWM | PWM |
| Applications | - | Automotive, Lighting, Signage | - | Automotive | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

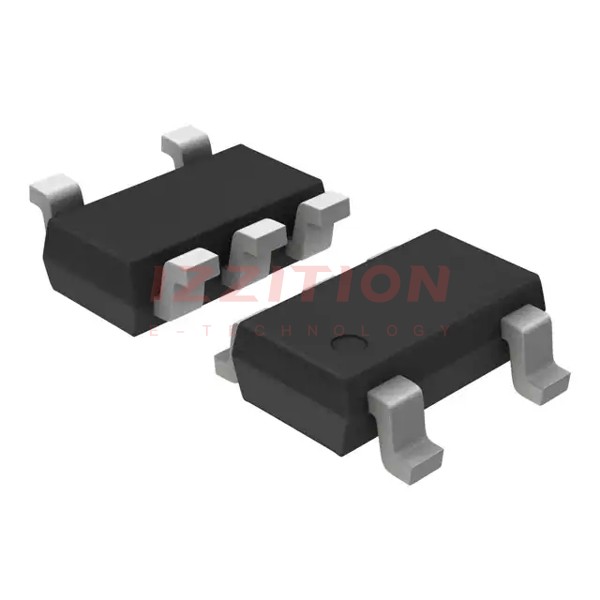

| Package / Case | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 | TSOT-25 | TSOT-25 | TSOT-25 | TSOT-23-5 |
