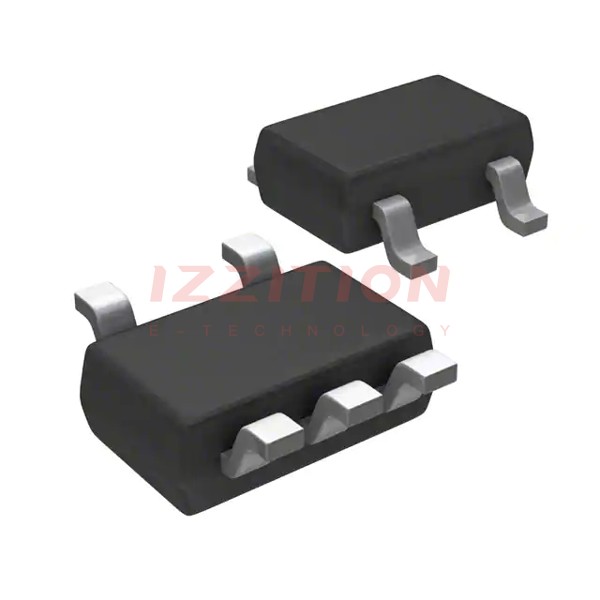

| Part Number | ZXCL260H5TA | ZXCL280H5TA | ZXCL250H5TA | ZXCL260E5TA |
|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.6V | 2.8V | 2.5V | 2.6V |
| Voltage - Output (Max) | - | - | - | - |
| Voltage Dropout (Max) | 0.31V @ 100mA | 0.28V @ 100mA | 0.325V @ 100mA | 0.31V @ 100mA |
| Current - Output | 150mA | 150mA | 100mA | 150mA |
| Current - Quiescent (Iq) | 50 µA | 50 µA | 50 µA | 50 µA |
| Current - Supply (Max) | 120 µA | 120 µA | 120 µA | 120 µA |
| PSRR | - | - | - | - |
| Control Features | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | 5-TSSOP, SC-70-5, SOT-353 | SC-74A, SOT-753 |
| Supplier Device Package | SC-70-5 | SC-70-5 | SC-70-5 | SOT-23-5 |
