| Part Number | ZX3CDBS1M832TA | ZX3CD1S1M832TA | ZX3CD3S1M832TA |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Active | Obsolete |
| Transistor Type | NPN + Diode (Isolated) | - | PNP + Diode (Isolated) |
| Current - Collector (Ic) (Max) | 4.5 A | - | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V | - | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 270mV @ 125mA, 4.5A | - | 370mV @ 250mA, 2.5A |
| Current - Collector Cutoff (Max) | 25nA | - | 25nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2A, 2V | - | 60 @ 1.5A, 2V |
| Power - Max | 3 W | - | 3 W |
| Frequency - Transition | 140MHz | - | 190MHz |
| Operating Temperature | 150°C (TJ) | - | 150°C (TJ) |
| Mounting Type | Surface Mount | - | Surface Mount |

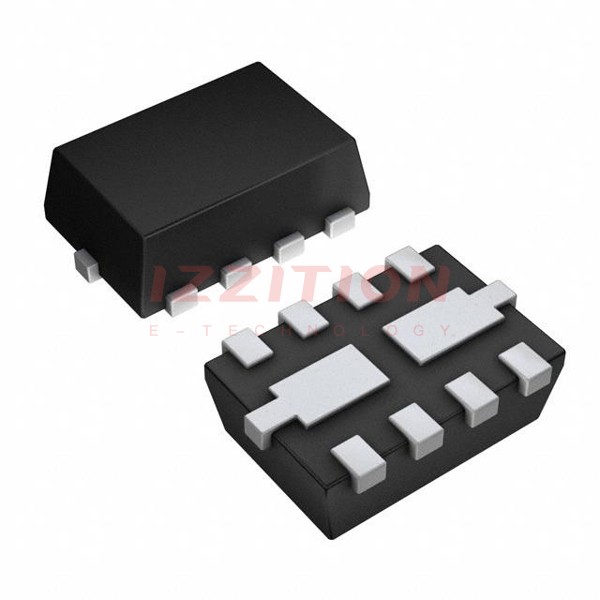

| Package / Case | 8-VDFN Exposed Pad | - | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-MLP (3x2) | - | 8-MLP (3x2) |
