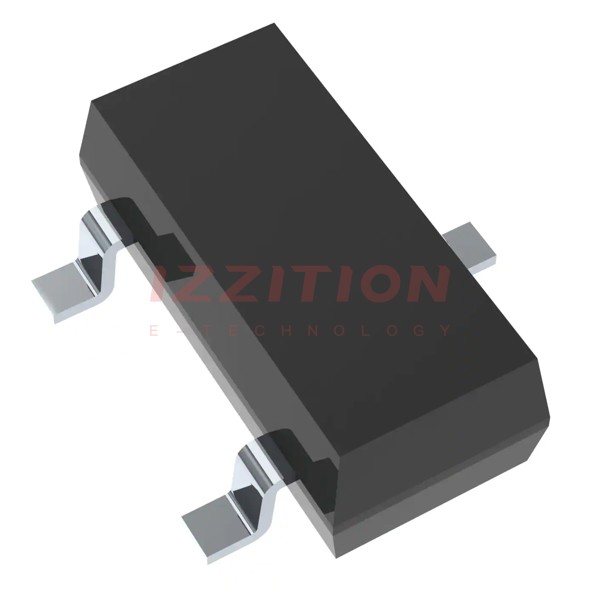

Diodes Incorporated-ZTN23015CFHQTA - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Transistor Type:	NPN
Current - Collector (Ic) (Max):	6 A
Voltage - Collector Emitter Breakdown (Max):	15 V
Vce Saturation (Max) @ Ib, Ic:	180mV @ 120mA, 6A
Current - Collector Cutoff (Max):	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 500mA, 2V
Power - Max:	730 mW
Frequency - Transition:	235MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-236-3, SC-59, SOT-23-3
Supplier Device Package:	SOT-23 (Type DN)

Diodes Incorporated ZTN23015CFHQTA
