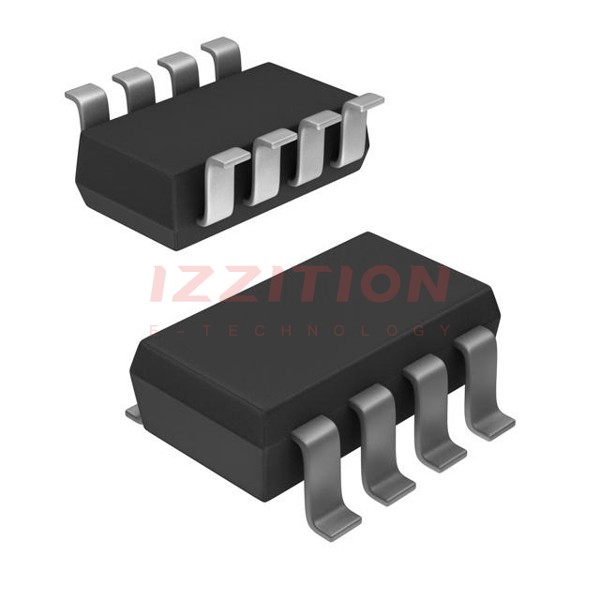

| Part Number | ZDT6705TC | ZDT705TC | ZDT605TC | ZDT6702TC | ZDT6705TA |
|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN, PNP Darlington (Dual) | 2 PNP Darlington (Dual) | 2 NPN Darlington (Dual) | NPN, PNP Darlington (Dual) | NPN, PNP Darlington (Dual) |
| Current - Collector (Ic) (Max) | 1A | 1A | 1A | 1.75A | 1A |
| Voltage - Collector Emitter Breakdown (Max) | 120V | 120V | 120V | 60V | 120V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 1mA, 1A | 2.5V @ 2mA, 2A | 1.5V @ 1mA, 1A | 1.28V @ 2mA, 1.75A | 1.5V @ 1mA, 1A |
| Current - Collector Cutoff (Max) | 10µA | 10µA | 10µA | 500nA | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 2000 @ 1A, 5V | 3000 @ 1A, 5V | 2000 @ 1A, 5V | 5000 @ 500mA, 5V / 2000 @ 500mA, 5V | 2000 @ 1A, 5V |
| Power - Max | 2.75W | 2.75W | 2.75W | 2.75W | 2.75W |
| Frequency - Transition | 150MHz | 160MHz | 150MHz | 140MHz | 150MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-223-8 | SOT-223-8 | SOT-223-8 | SOT-223-8 | SOT-223-8 |
| Supplier Device Package | SM8 | SM8 | SM8 | SM8 | SM8 |
