Diodes Incorporated-W04G - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	W04G	W04L	W06G	W08G	W01G	W02G
Manufacturer	Diodes Incorporated	Rectron USA	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	400 V	400 V	600 V	800 V	100 V	200 V
Current - Average Rectified (Io)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Voltage - Forward (Vf) (Max) @ If	1 V @ 1.5 A	1 V @ 1.5 A	1 V @ 1.5 A	1 V @ 1.5 A	1 V @ 1.5 A	1 V @ 1.5 A
Current - Reverse Leakage @ Vr	5 µA @ 400 V	200 nA @ 400 V	5 µA @ 600 V	5 µA @ 800 V	5 µA @ 100 V	5 µA @ 200 V
Operating Temperature	-65°C ~ 150°C (TJ)	-55°C ~ 125°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-Circular, WOG	4-Circular, RC-2	4-Circular, WOG	4-Circular, WOG	4-Circular, WOG	4-Circular, WOG
Supplier Device Package	WOG	RC-2	WOG	WOG	WOG	WOG

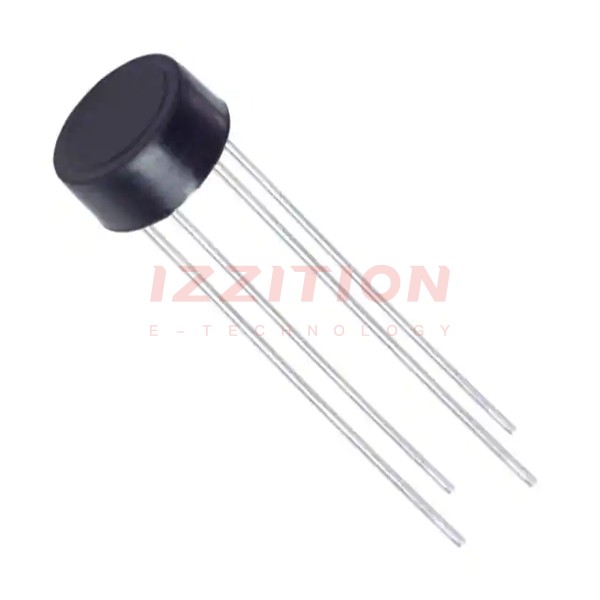

Diodes Incorporated W04G

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	400 V
Current - Average Rectified (Io):	1.5 A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 1.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 400 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-Circular, WOG
Supplier Device Package:	WOG
