Diodes Incorporated-W01G - Diodes - Bridge Rectifiers Product Specifications and Latest Quotes

Part Number	W01G	W01L	W02G	W04G	W06G	W08G	W01M
Manufacturer	Diodes Incorporated	Rectron USA	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	GeneSiC Semiconductor
Product Status	Obsolete	Active	Obsolete	Obsolete	Obsolete	Obsolete	Obsolete
Diode Type	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase	Single Phase
Technology	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Voltage - Peak Reverse (Max)	100 V	100 V	200 V	400 V	600 V	800 V	100 V
Current - Average Rectified (Io)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Voltage - Forward (Vf) (Max) @ If	1 V @ 1.5 A	1 V @ 1.5 A	1 V @ 1.5 A	1 V @ 1.5 A	1 V @ 1.5 A	1 V @ 1.5 A	1 V @ 1 A
Current - Reverse Leakage @ Vr	5 µA @ 100 V	200 nA @ 100 V	5 µA @ 200 V	5 µA @ 400 V	5 µA @ 600 V	5 µA @ 800 V	10 µA @ 100 V
Operating Temperature	-65°C ~ 150°C (TJ)	-55°C ~ 125°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 150°C (TJ)	-65°C ~ 125°C (TJ)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	4-Circular, WOG	4-Circular, RC-2	4-Circular, WOG	4-Circular, WOG	4-Circular, WOG	4-Circular, WOG	4-Circular, WOM
Supplier Device Package	WOG	RC-2	WOG	WOG	WOG	WOG	WOM

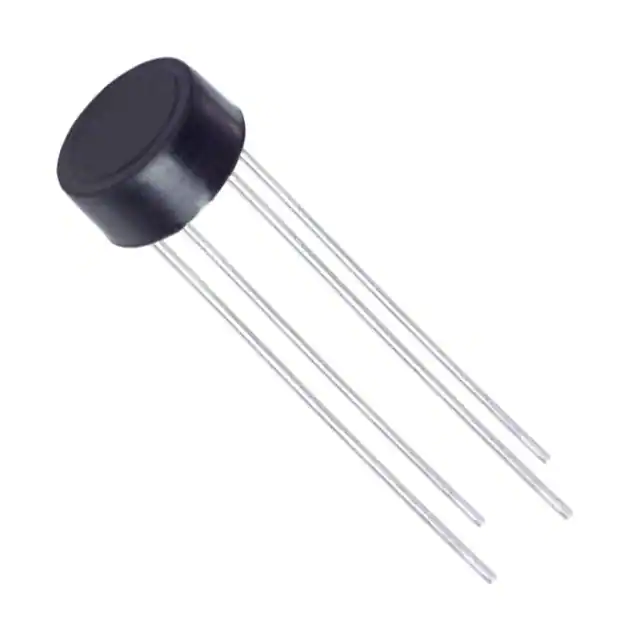

Diodes Incorporated W01G

Diode Type:	Single Phase
Technology:	Standard
Voltage - Peak Reverse (Max):	100 V
Current - Average Rectified (Io):	1.5 A
Voltage - Forward (Vf) (Max) @ If:	1 V @ 1.5 A
Current - Reverse Leakage @ Vr:	5 µA @ 100 V
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	4-Circular, WOG
Supplier Device Package:	WOG
