Please send RFQ , we will respond immediately.

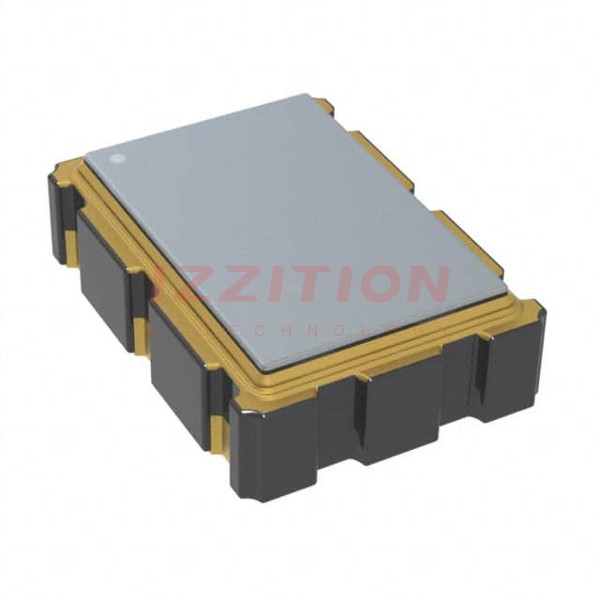

| Part Number | UX72F62024 | UX72F62027 | UX72F62029 | UX72F62044 | UX72F62020 | UX72F62022 |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 156.253906 MHz | 156.25 MHz | 156.253906 MHz | 156.2543 MHz | 156.25 MHz | 156.25 MHz |
| Function | - | - | - | Enable/Disable | - | - |
| Output | LVPECL | LVPECL | LVPECL | LVPECL | LVPECL | LVPECL |
| Voltage - Supply | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | - | - | - | ±20ppm | - | - |
| Absolute Pull Range (APR) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - |
| Current - Supply (Max) | - | - | - | 70mA | - | - |
| Ratings | - | - | - | - | - | - |
| Mounting Type | - | - | - | Surface Mount | - | - |
| Package / Case | - | - | - | 6-SMD, No Lead | - | - |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | - | - | - | 0.079" (2.00mm) | - | - |
