Please send RFQ , we will respond immediately.

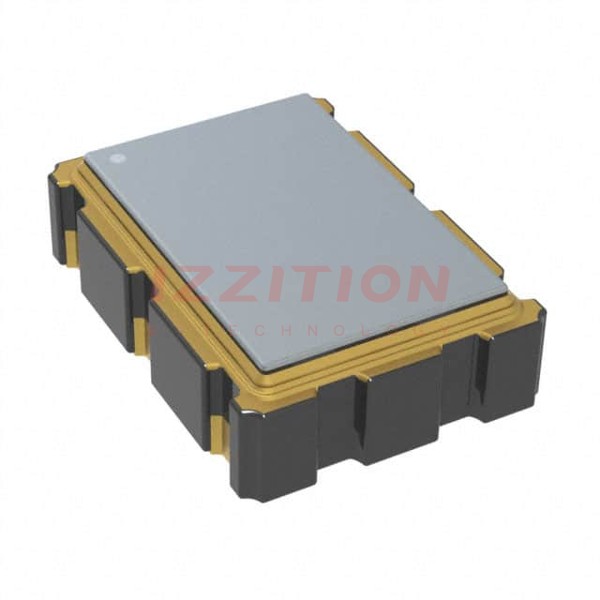

| Part Number | UX72F62002 | UX72F62007 | UX72F62009 | UX72F62022 | UX73F62002 | UX74F62002 | UX22F62002 | UX32F62002 | UX52F62002 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | - | 156.25 MHz | 156.25 MHz | 156.25 MHz | 156.2539 MHz | 156.25 MHz | - | 156.25 MHz | 156.25 MHz |
| Function | - | - | - | - | - | - | Enable/Disable | - | - |
| Output | - | LVPECL | LVPECL | LVPECL | LVDS | HCSL | LVPECL | LVPECL | LVPECL |
| Voltage - Supply | - | 3.3V | 2.5V | 3.3V | 2.5V | 2.5V | 2.5V, 3.3V | 3.3V | 3.3V |
| Frequency Stability | - | - | - | - | - | - | ±100ppm | - | - |
| Absolute Pull Range (APR) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | - | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | - | - | - | - | - | - | 70mA | - | - |
| Ratings | - | - | - | - | - | - | - | - | - |
| Mounting Type | - | - | - | - | - | - | Surface Mount | - | - |
| Package / Case | - | - | - | - | - | - | 6-SMD, No Lead | - | - |
| Size / Dimension | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | - | - | - | - | - | - | 0.035" (0.90mm) | - | - |
