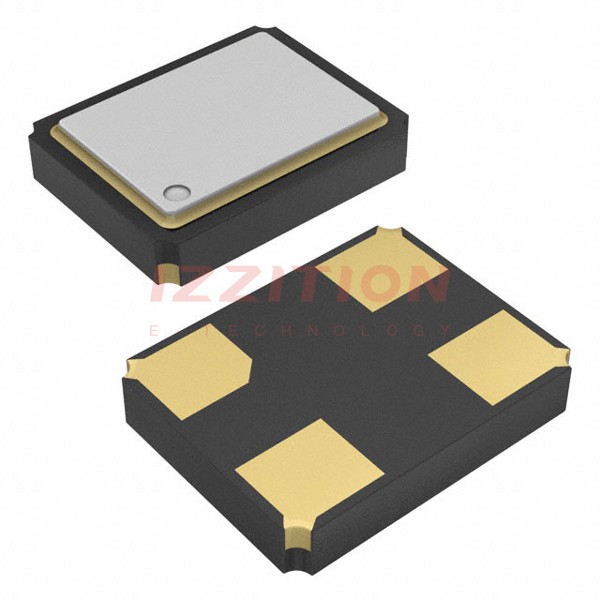

| Part Number | US3840005 | US3840005Z | US3840004 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 38.4 MHz | 38.4 MHz | 38.4 MHz |
| Frequency Stability | ±10ppm | ±10ppm | ±10ppm |
| Frequency Tolerance | ±10ppm | ±10ppm | ±10ppm |
| Load Capacitance | 10pF | 10pF | 8pF |
| ESR (Equivalent Series Resistance) | 60 Ohms | 60 Ohms | 80 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -20°C ~ 70°C |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Height - Seated (Max) | 0.016" (0.40mm) | 0.014" (0.35mm) | 0.016" (0.40mm) |
