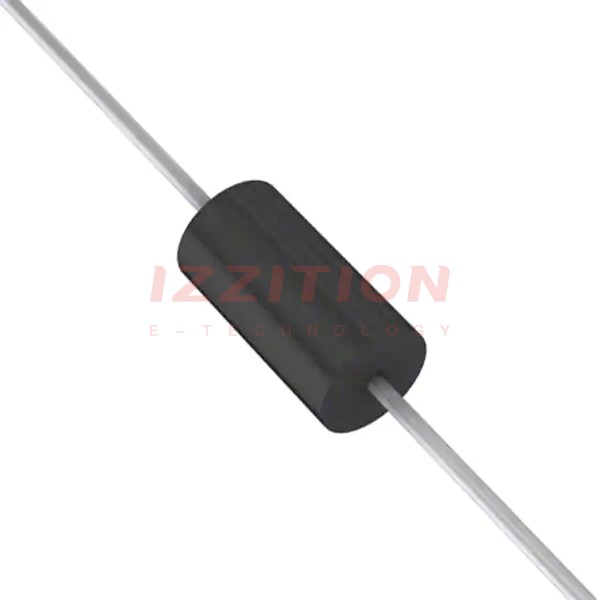

| Part Number | UF2005-T | UF2006-T | UF3005-T | UF2007-T | UF2001-T | UF2002-T | UF2003-T | UF2004-T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 800 V | 600 V | 1000 V | 50 V | 100 V | 200 V | 400 V |
| Current - Average Rectified (Io) | 2A | 2A | 3A | 2A | 2A | 2A | 2A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 2 A | 1.7 V @ 2 A | 1.7 V @ 3 A | 1.7 V @ 2 A | 1 V @ 2 A | 1 V @ 2 A | 1 V @ 2 A | 1.3 V @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns | 75 ns | 75 ns | 75 ns | 50 ns | 50 ns | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V | 5 µA @ 800 V | 5 µA @ 600 V | 5 µA @ 1000 V | 5 µA @ 50 V | 5 µA @ 100 V | 5 µA @ 200 V | 5 µA @ 400 V |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz | 30pF @ 4V, 1MHz | 50pF @ 4V, 1MHz | 30pF @ 4V, 1MHz | 50pF @ 4V, 1MHz | 50pF @ 4V, 1MHz | 50pF @ 4V, 1MHz | 50pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-201AD, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 | DO-15 | DO-201AD | DO-15 | DO-15 | DO-15 | DO-15 | DO-15 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
