| Part Number | SMCJ51A-13 | SMCJ51CA-13 | SMCJ54A-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Active |
| Type | Zener | Zener | - |
| Unidirectional Channels | 1 | - | - |
| Bidirectional Channels | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 51V | 51V | - |
| Voltage - Breakdown (Min) | 56.7V | 56.7V | - |
| Voltage - Clamping (Max) @ Ipp | 82.4V | 82.4V | - |
| Current - Peak Pulse (10/1000µs) | 18.2A | 18.2A | - |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | - |
| Power Line Protection | No | No | - |
| Applications | General Purpose | General Purpose | - |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | - |

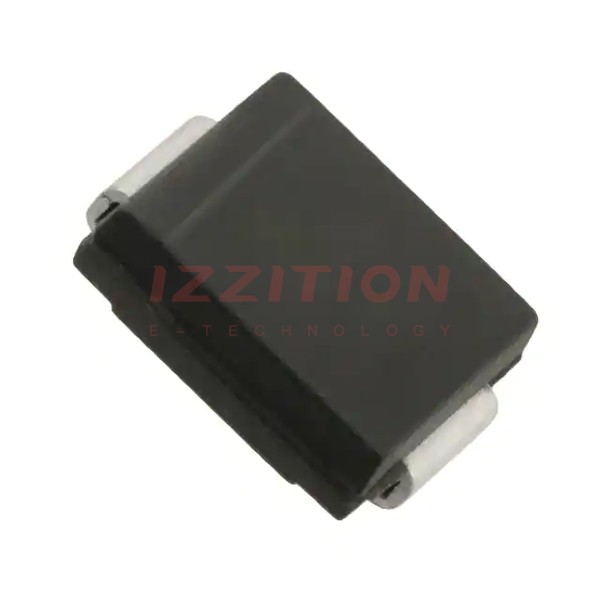

| Package / Case | DO-214AB, SMC | DO-214AB, SMC | - |
| Supplier Device Package | SMC | SMC | - |
