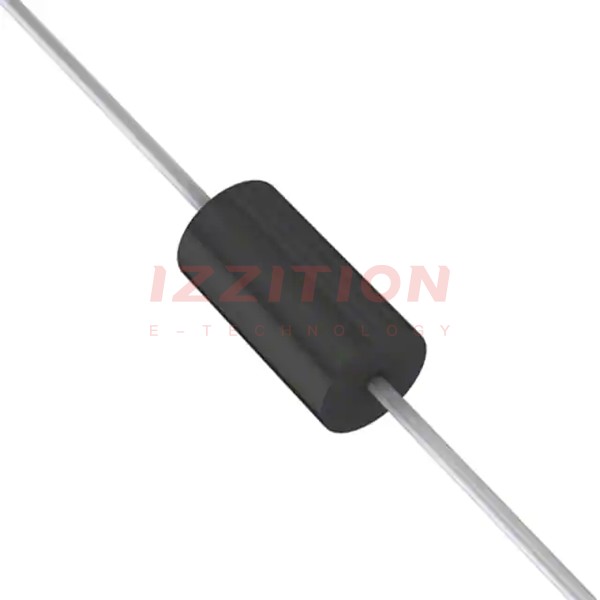

| Part Number | SF20JG-T | SF20AG-T | SF20BG-T | SF20CG-T | SF20DG-T | SF20FG-T | SF20GG-T | SF20HG-T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 50 V | 100 V | 150 V | 200 V | 300 V | 400 V | 500 V |
| Current - Average Rectified (Io) | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 2 A | 950 mV @ 2 A | 950 mV @ 2 A | 950 mV @ 2 A | 950 mV @ 2 A | 1.3 V @ 2 A | 1.3 V @ 2 A | 1.5 V @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 35 ns | 35 ns | 35 ns | 35 ns | 40 ns | 40 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V | 10 µA @ 50 V | 10 µA @ 100 V | 10 µA @ 150 V | 10 µA @ 200 V | 10 µA @ 300 V | 10 µA @ 400 V | 10 µA @ 500 V |
| Capacitance @ Vr, F | 50pF @ 4V, 1MHz | 75pF @ 4V, 1MHz | 75pF @ 4V, 1MHz | 75pF @ 4V, 1MHz | 75pF @ 4V, 1MHz | 75pF @ 4V, 1MHz | 75pF @ 4V, 1MHz | 50pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 | DO-15 | DO-15 | DO-15 | DO-15 | DO-15 | DO-15 | DO-15 |
| Operating Temperature - Junction | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
