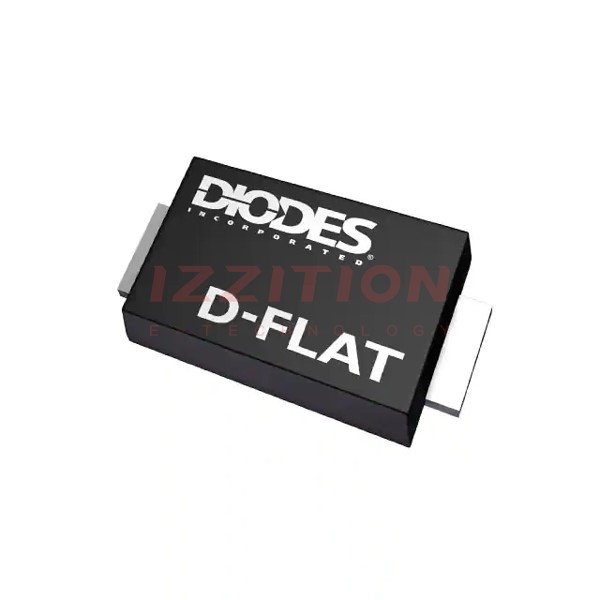

| Part Number | SF1GDF-13 | SF1JDF-13 | SF1DDF-13 |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 600 V | 200 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A | 1.7 V @ 1 A | 980 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns | 35 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V | 5 µA @ 600 V | 5 µA @ 200 V |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz | 20pF @ 4V, 1MHz | 20pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | D-Flat | D-Flat | D-Flat |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
