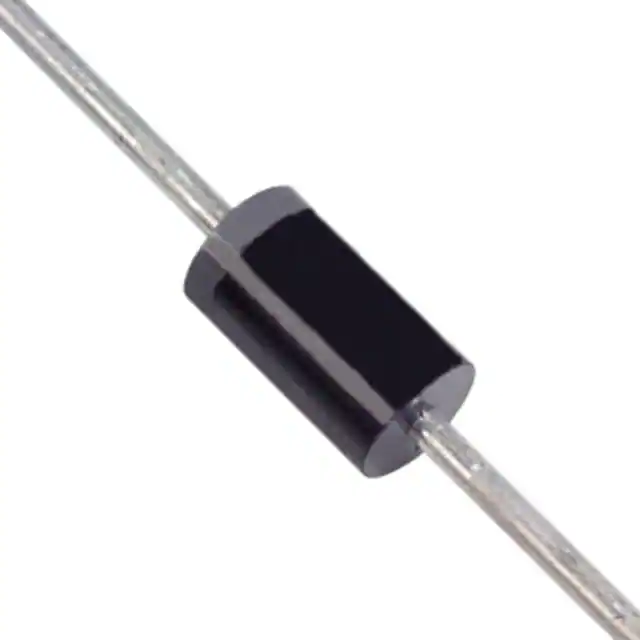

| Part Number | SF11-T | SF11-TP |
|---|---|---|
| Manufacturer | Diodes Incorporated | Micro Commercial Co |
| Product Status | Obsolete | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50 V | 50 V |
| Current - Average Rectified (Io) | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 975 mV @ 1 A | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 50 V | - |
| Capacitance @ Vr, F | - | 40pF @ 4V, 1MHz |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 | DO-41 |
| Operating Temperature - Junction | -65°C ~ 175°C | -55°C ~ 125°C |
