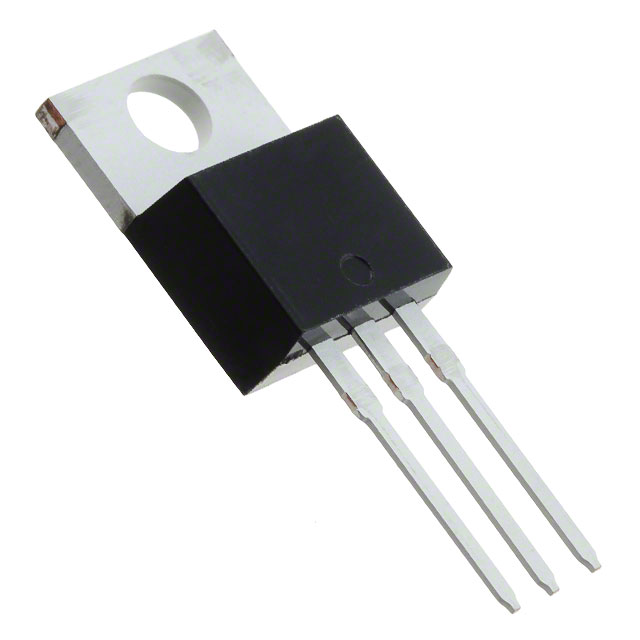

| Part Number | SDT40A60VCT | SDT20A60VCT |
|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V |
| Current - Average Rectified (Io) (per Diode) | 20A | 10A |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 20 A | 570 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 60 V | 200 µA @ 60 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220-3 | TO-220-3 |
