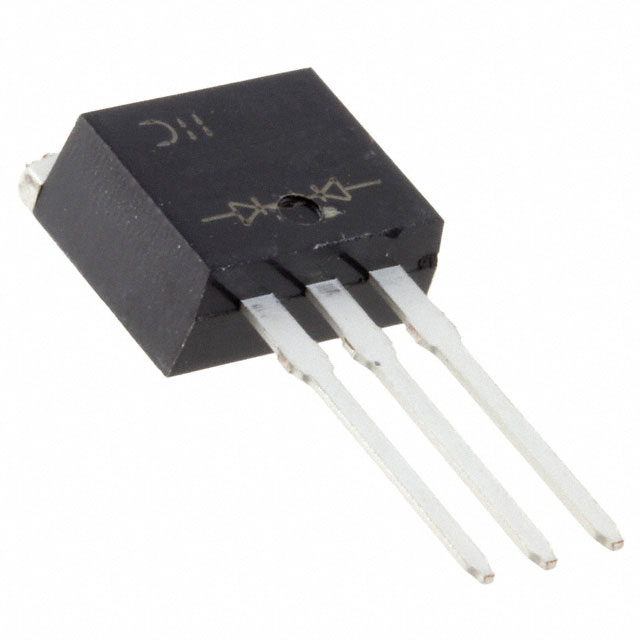

| Part Number | SDT40A120CTE | SDT40A100CTE | SDT40A120CT |
|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Last Time Buy | Last Time Buy | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V | 100 V | 120 V |
| Current - Average Rectified (Io) (per Diode) | 20A | 20A | 20A |
| Voltage - Forward (Vf) (Max) @ If | 880 mV @ 20 A | 720 mV @ 20 A | 880 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 120 µA @ 120 V | 100 µA @ 100 V | 120 µA @ 120 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-262-3 Long Leads, I²Pak, TO-262AA | TO-220-3 |
| Supplier Device Package | TO-262 | TO-262 | TO-220-3 |
