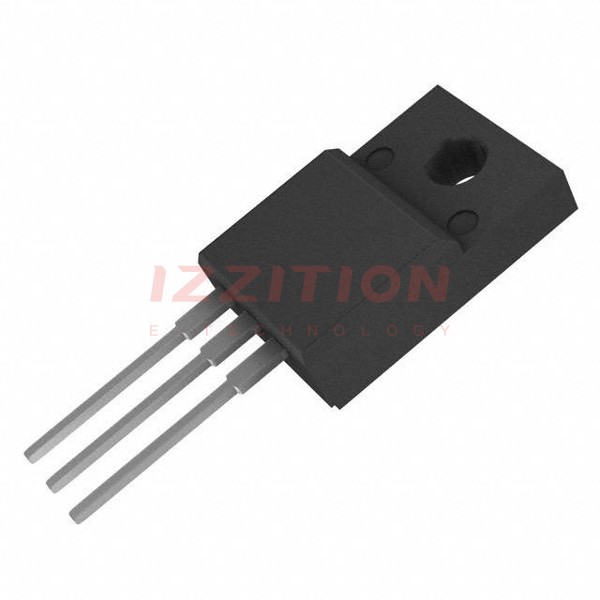

| Part Number | SDT40120CTFP | SDT40A120CTFP | SDT40H120CTFP | SDT20120CTFP | SDT30120CTFP | SDT40100CTFP |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V | 120 V | 120 V | 120 V | 120 V | 100 V |
| Current - Average Rectified (Io) (per Diode) | 20A | 20A | 20A | 10A | 15A | 20A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 20 A | 880 mV @ 20 A | 820 mV @ 20 A | 880 mV @ 10 A | 930 mV @ 15 A | 790 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 120 V | 120 µA @ 120 V | 120 µA @ 120 V | 80 µA @ 120 V | 100 µA @ 120 V | 100 µA @ 100 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AB | ITO-220AB | ITO-220AB | ITO-220AB | ITO-220AB | ITO-220AB |
