Please send RFQ , we will respond immediately.

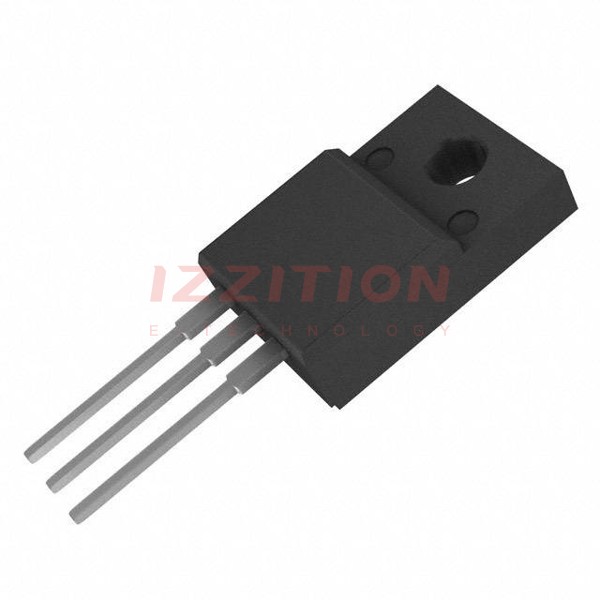

| Part Number | SDT30100CTFP | SDT30120CTFP | SDT30A100CTFP | SDT30100GCTFP | SDT40100CTFP | SDT10100CTFP |
|---|---|---|---|---|---|---|
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 120 V | 100 V | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) (per Diode) | 15A | 15A | 15A | 15A | 20A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 15 A | 930 mV @ 15 A | 730 mV @ 15 A | 770 mV @ 15 A | 790 mV @ 20 A | 760 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 100 V | 100 µA @ 120 V | 100 µA @ 100 V | 30 µA @ 100 V | 100 µA @ 100 V | 50 µA @ 100 V |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | ITO-220AB | ITO-220AB | ITO-220AB | ITO220AB (Type WX) | ITO-220AB | ITO-220AB |
